Description
General part information

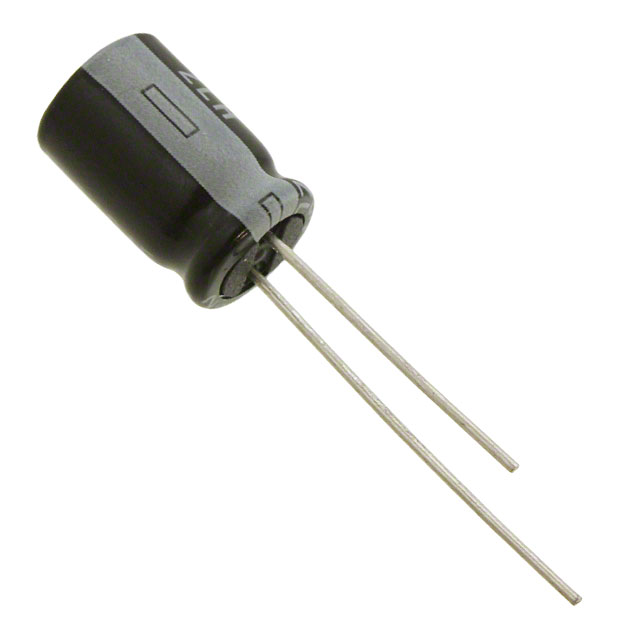

35ZLH220MEFCM18X11.5
220 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 35ZLH220MEFCM18X11.5 |
|---|---|
| Applications | General Purpose |
| Capacitance | 220 µF |
| Height - Seated (Max) | 0.512 in |
| Impedance | 56 mOhm |
| Lead Spacing | 0.138 in |
| Lifetime | 8000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 472.5 mA |
| Size / Dimension Diameter | 0.315 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
