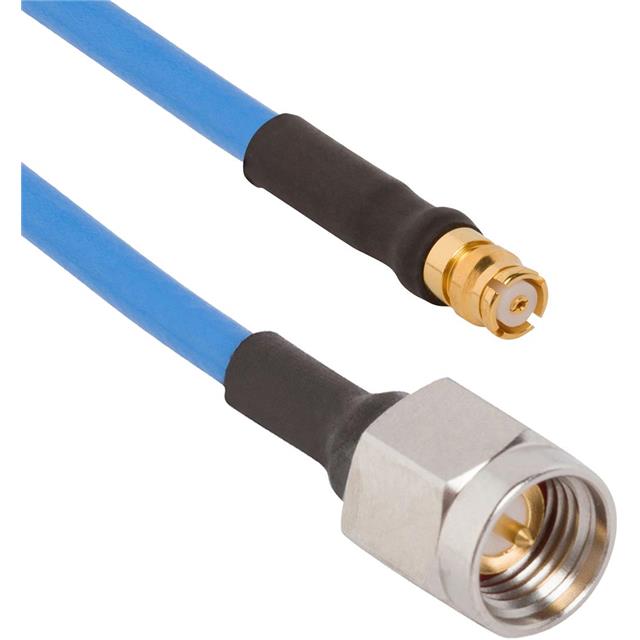

Specification	7012-1323

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMP Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	TFlex
Cable Type Size	405
Color	Blue
Features	Shielded
Frequency - Max	18 GHz
Length	24 in
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Overall Impedance	50 Ohms
Style	SMA, SMP

7012 Series

Part	1st Connector Mounting Type	Features	2nd Connector	2nd Contact Gender	Length	2nd Connector Mounting Type	Overall Impedance	Color	Style	Frequency - Max	Cable Type Size	Cable Type	Cable Diameter	Cable Outer Diameter	1st Connector	1st Contact Gender	Operating Temperature (Min)	Operating Temperature (Max)	2nd Connector Diameter

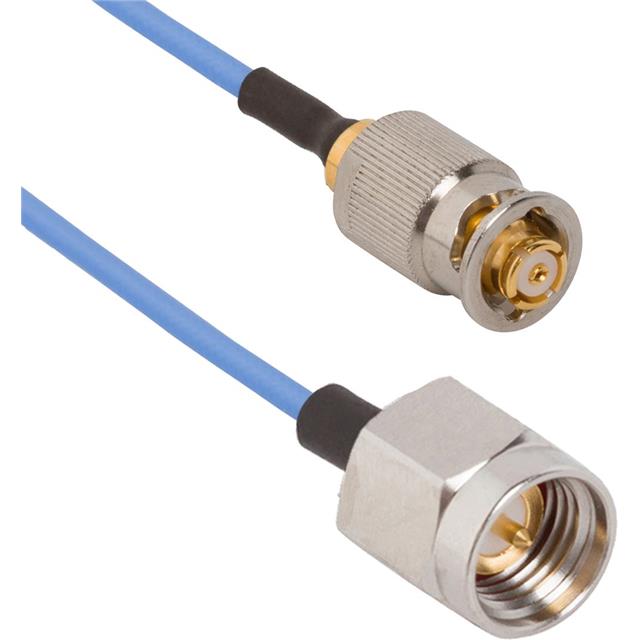

McGill Microwave Systems 7012-1301	Free Hanging (In-Line)	Shielded	SMP Jack	Female	0.5 ft	Free Hanging (In-Line)	50 Ohms	Blue	SMA SMP	18 GHz	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	SMA Plug	Male	-65 °C	165 °C

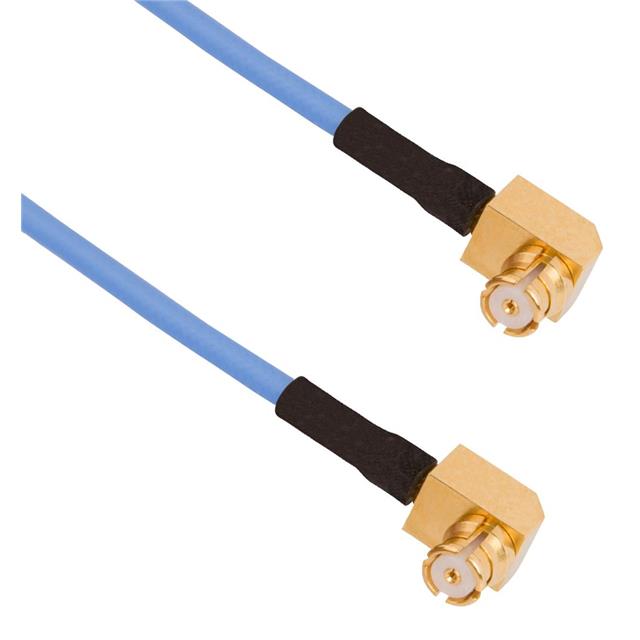

McGill Microwave Systems 7012-0802	Free Hanging (In-Line)	Shielded	Right Angle SMP Jack	Female	0.5 ft	Free Hanging (In-Line)	50 Ohms	Blue	SMP	26.5 GHz	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Right Angle SMP Jack	Female	-65 °C	165 °C
McGill Microwave Systems 7012-1322	Free Hanging (In-Line)	Shielded	SMP Jack	Female	12 in	Free Hanging (In-Line)	50 Ohms	Blue	SMA SMP	18 GHz	405	TFlex			SMA Plug	Male	-65 °C	165 °C

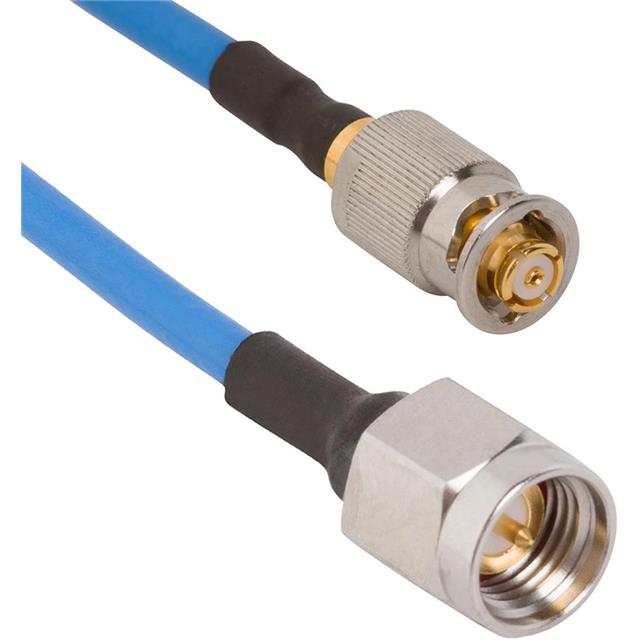

McGill Microwave Systems 7012-1300	Free Hanging (In-Line)	Shielded	SMP Jack	Female	24 in	Free Hanging (In-Line)	50 Ohms	Blue	SMA SMP	18 GHz	405	TFlex			SMA Plug	Male	-65 °C	165 °C

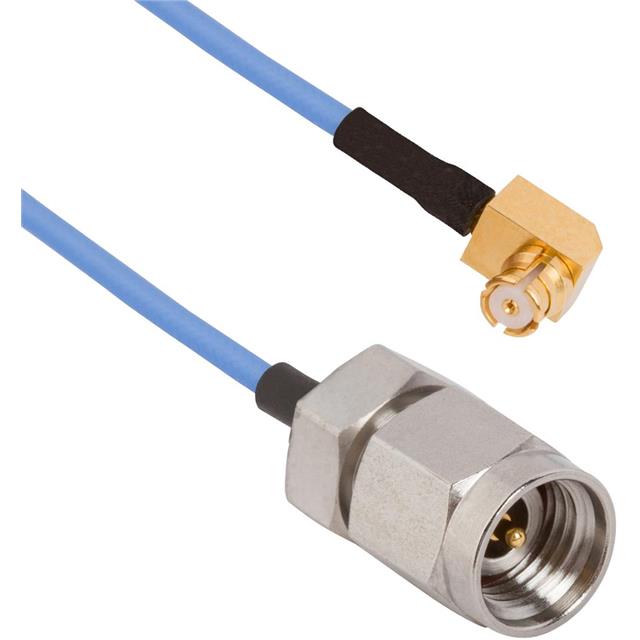

McGill Microwave Systems 7012-1066	Free Hanging (In-Line)	Shielded	Plug	Male	0.5 ft	Free Hanging (In-Line)	50 Ohms	Blue	SMP to 2.92mm	40 Gbps	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Right Angle SMP Jack	Female	-65 °C	165 °C	2.92 mm

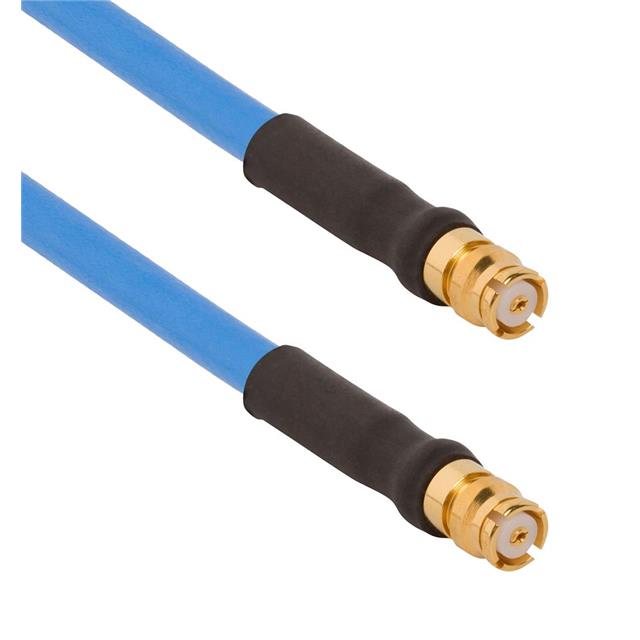

McGill Microwave Systems 7012-1291	Free Hanging (In-Line)	Shielded	SMP Jack	Female	0.5 ft	Free Hanging (In-Line)	50 Ohms	Blue	SMP	40 Gbps	405	TFlex			SMP Jack	Female	-65 °C	165 °C

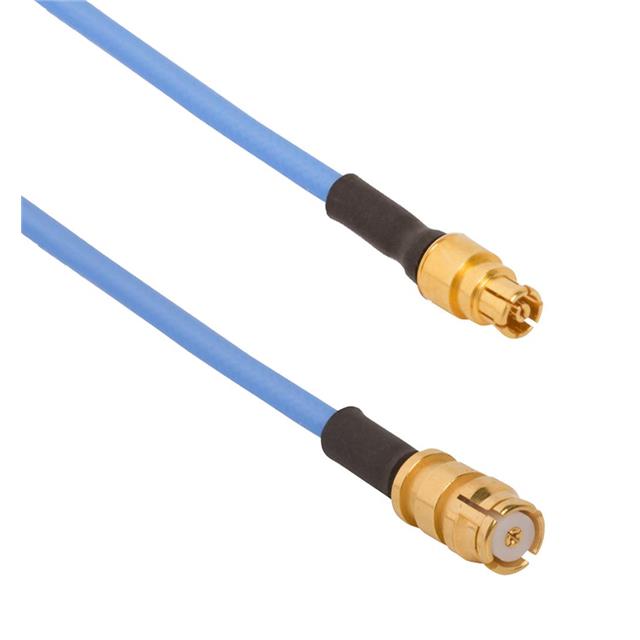

McGill Microwave Systems 7012-1296	Free Hanging (In-Line)	Shielded	SMPM Jack	Female	24 in	Free Hanging (In-Line)	50 Ohms	Blue	SMP SMPM	40 Gbps	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	SMP Jack	Female	-65 °C	165 °C

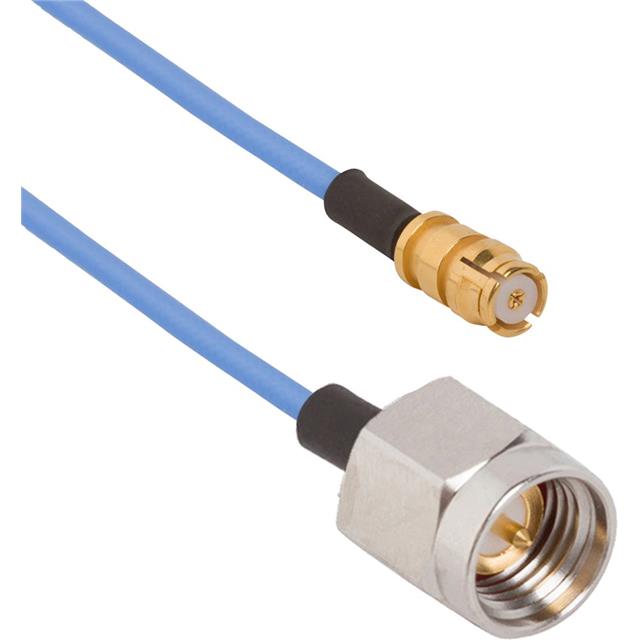

McGill Microwave Systems 7012-1324	Free Hanging (In-Line)	Shielded	SMA Jack	Female	0.5 ft	Free Hanging (In-Line)	50 Ohms	Blue	SMA SMP	18 GHz	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	SMA Plug	Male	-65 °C	165 °C

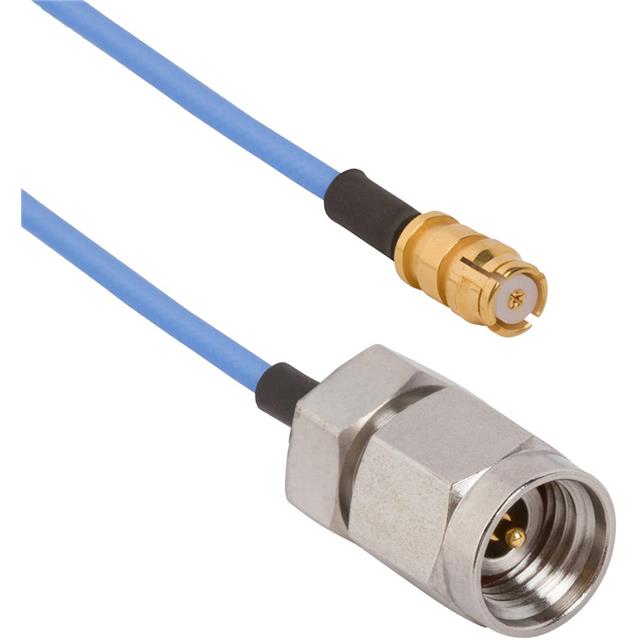

McGill Microwave Systems 7012-1286	Free Hanging (In-Line)	Shielded	Plug	Male	24 in	Free Hanging (In-Line)	50 Ohms	Blue	SMP to 2.92mm	40 Gbps	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	SMP Jack	Female	-65 °C	165 °C	2.92 mm
McGill Microwave Systems 7012-1087	Free Hanging (In-Line)	Shielded	SMP Jack	Female	12 in	Free Hanging (In-Line)	50 Ohms	Blue	SMA SMP	18 GHz	405	TFlex			SMA Plug	Male	-65 °C	165 °C
