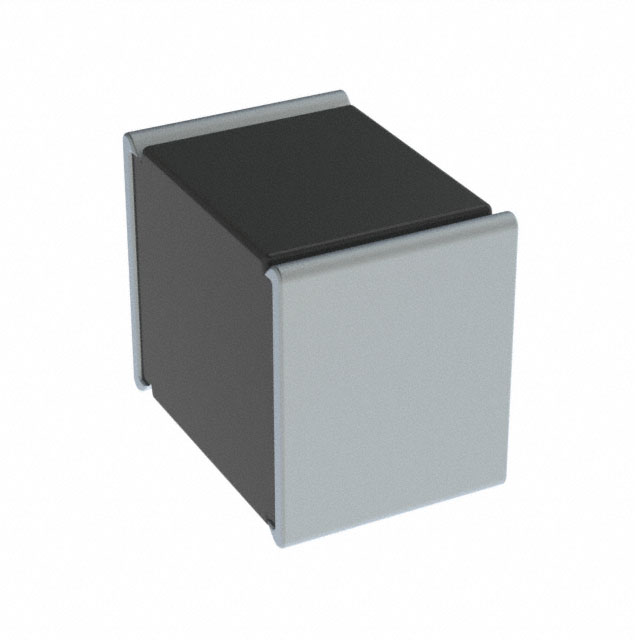

Specification	SMDTC03330KB00MS00

Applications	DC Filtering, DC Link
Capacitance	0.33 µF
Dielectric Material	Metallized, Polyester, Polyethylene Terephthalate (PET)
Height - Seated (Max)	0.169 in
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	1812 (4532 Metric)
Size / Dimension Length	0.189 in
Size / Dimension Width	0.13 in
Termination	Solder Pads
Tolerance	20 %
Voltage Rating - AC	40 V
Voltage Rating - DC	63 V

SMDTC0 Series

...

Part	Capacitance	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating - AC	Mounting Type	Height - Seated (Max)	Applications	Voltage Rating - DC	Dielectric Material	Termination	Size / Dimension Length	Size / Dimension Width	Tolerance
WIMA SMDTC04100VA00KR00	1 µF	4030 (10276 Metric)	125 °C	-55 °C	40 V	Surface Mount	0.209 in	DC Filtering DC Link	63 V	Metallized Polyester Polyethylene Terephthalate (PET)	Solder Pads	0.402 in	0.299 in	10 %
WIMA SMDTC03470QA00MQ00	0.47 µF	2220 (5750 Metric)	125 °C	-55 °C	40 V	Surface Mount	0.15 in	DC Filtering DC Link	63 V	Metallized Polyester Polyethylene Terephthalate (PET)	Solder Pads	0.224 in	0.201 in	20 %
WIMA SMDTC03220KA00MS00	0.22 µF	1812 (4532 Metric)	125 °C	-55 °C	40 V	Surface Mount	0.13 in	DC Filtering DC Link	63 V	Metallized Polyester Polyethylene Terephthalate (PET)	Solder Pads	0.189 in	0.13 in	20 %
WIMA SMDTC03330TA00MS00	0.33 µF	2824 (7260 Metric)	125 °C	-55 °C	40 V	Surface Mount	0.13 in	DC Filtering DC Link	63 V	Metallized Polyester Polyethylene Terephthalate (PET)	Solder Pads	0.283 in	0.24 in	20 %
WIMA SMDTC02680KA00KQ00	0.068 µF	1812 (4532 Metric)	125 °C	-55 °C	40 V	Surface Mount	0.13 in	DC Filtering DC Link	63 V	Metallized Polyester Polyethylene Terephthalate (PET)	Solder Pads	0.189 in	0.13 in	10 %
WIMA SMDTC02150TA00MQ00	0.015 µF	2824 (7260 Metric)	125 °C	-55 °C	40 V	Surface Mount	0.13 in	DC Filtering DC Link	63 V	Metallized Polyester Polyethylene Terephthalate (PET)	Solder Pads	0.283 in	0.24 in	20 %
WIMA SMDTC03100TA00KQ00	0.1 µF	2824 (7260 Metric)	125 °C	-55 °C	40 V	Surface Mount	0.13 in	DC Filtering DC Link	63 V	Metallized Polyester Polyethylene Terephthalate (PET)	Solder Pads	0.283 in	0.24 in	10 %
WIMA SMDTC03470QB00MQ00	0.47 µF	2220 (5750 Metric)	125 °C	-55 °C	40 V	Surface Mount	0.189 in	DC Filtering DC Link	63 V	Metallized Polyester Polyethylene Terephthalate (PET)	Solder Pads	0.224 in	0.201 in	20 %
WIMA SMDTC02150KA00MQ00	0.015 µF	1812 (4532 Metric)	125 °C	-55 °C	40 V	Surface Mount	0.13 in	DC Filtering DC Link	63 V	Metallized Polyester Polyethylene Terephthalate (PET)	Solder Pads	0.189 in	0.13 in	20 %
WIMA SMDTC04150TB00KS00	1.5 µF	2824 (7260 Metric)	125 °C	-55 °C	40 V	Surface Mount	0.209 in	DC Filtering DC Link	63 V	Metallized Polyester Polyethylene Terephthalate (PET)	Solder Pads	0.283 in	0.24 in	10 %
