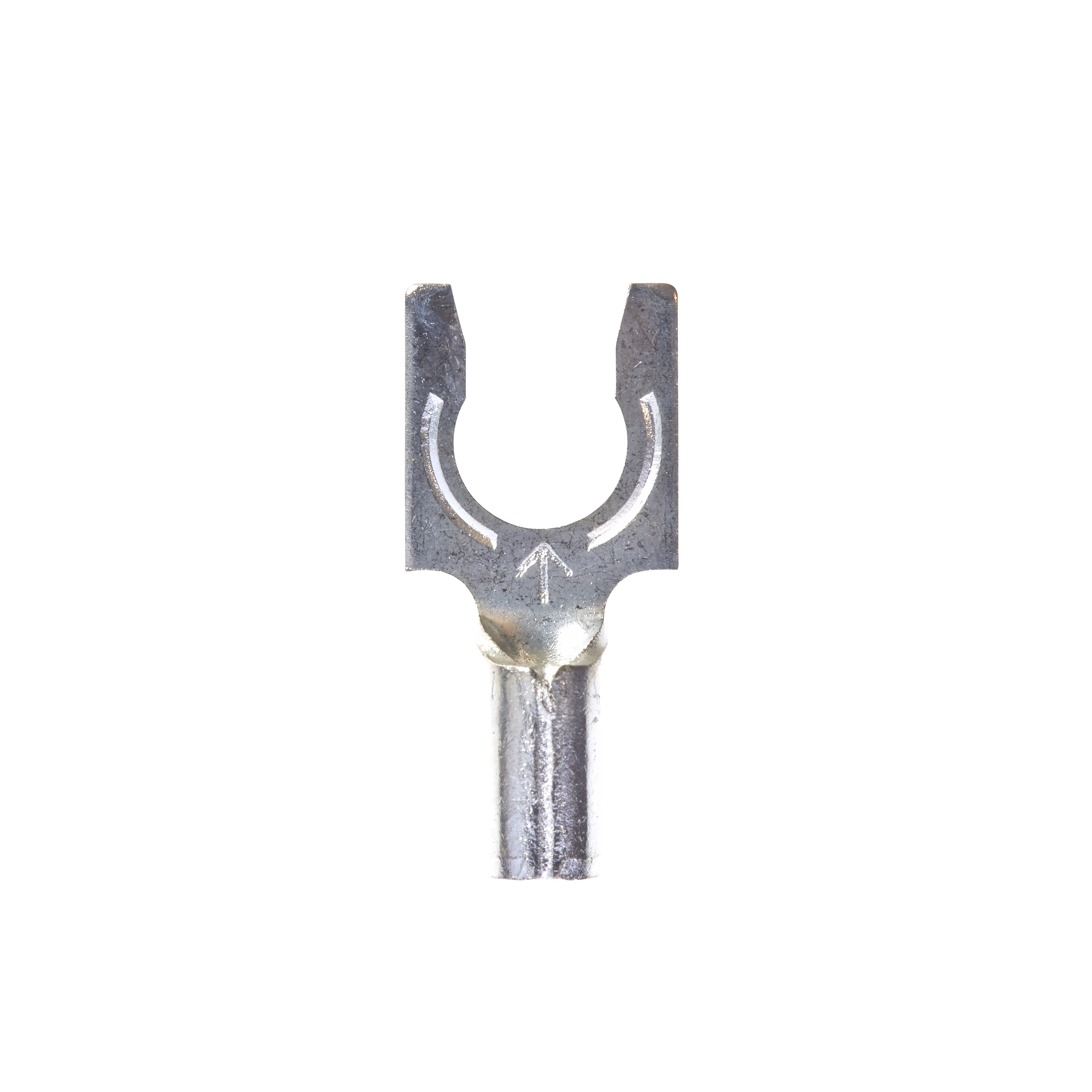

M18-10FLX-BOTTLE
Active3M Electronic Specialty
CONN SPADE TERM 18-22AWG 100PC
M18-10FLX-BOTTLE
Active3M Electronic Specialty
CONN SPADE TERM 18-22AWG 100PC
Description
General part information
M18-10FLX-BOTTLE
CONN SPADE TERM 18-22AWG 100PC
Technical Specifications
Parameters and characteristics for this part
| Specification | M18-10FLX-BOTTLE |
|---|---|
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall | 0.25 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Snap, Spring |
| Termination | Crimp |
| Width - Outer Edges | 0.35 in |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
