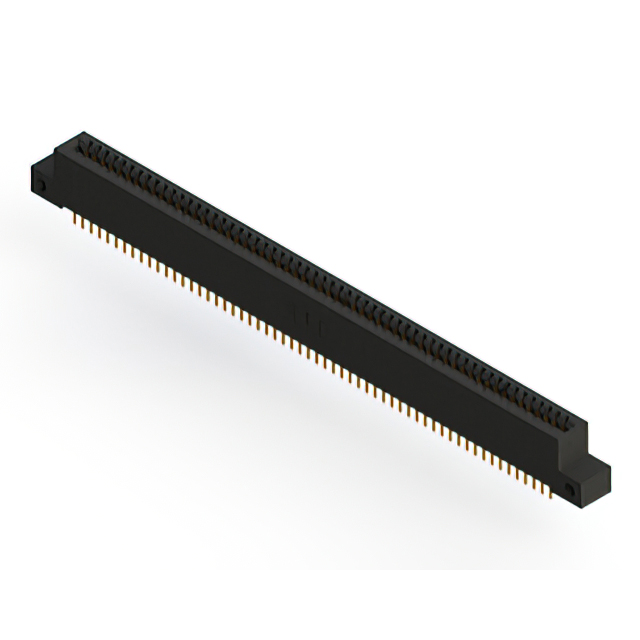

392-116-521-212
ActiveEDAC Inc.
CONN EDGE DUAL FML 116POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392-116-521-212
ActiveEDAC Inc.
CONN EDGE DUAL FML 116POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-116-521-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 116 |
| Number of Positions/Bay/Row [custom] | 58 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
392-116 Series
| Part | Contact Finish | Color | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Termination | Termination Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Material - Insulation | Number of Rows | Contact Material | Number of Positions | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Card Type | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Black | -40 °C | 105 ░C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | 2 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Through Hole | Polyester Thermoplastic | 2 | Copper Alloy | 116 | 58 | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | |
EDAC Inc. | Gold | Black | -40 °C | 105 ░C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Wire Wrap | 2 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Through Hole | Polyester Thermoplastic | 2 | Copper Alloy | 116 | 58 | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | |
EDAC Inc. | Gold | Black | -40 °C | 105 ░C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Board Edge Straddle Mount | Polyester Thermoplastic | 2 | Copper Alloy | 116 | 58 | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | Card Extender | ||
EDAC Inc. | Gold | Black | -40 °C | 105 ░C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder Wire Wrap | 2 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Through Hole Right Angle | Polyester Thermoplastic | 2 | Copper Alloy | 116 | 58 | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | |
EDAC Inc. | Gold | Black | -40 °C | 105 ░C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | 2 | Flush Mount M3 Threaded Insert Top Opening | Through Hole | Polyester Thermoplastic | 2 | Copper Alloy | 116 | 58 | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Gold | Black | -40 °C | 105 ░C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | 2 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Through Hole | Polyester Thermoplastic | 2 | Copper Alloy | 116 | 58 | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | |
EDAC Inc. | Gold | Black | -40 °C | 105 ░C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder | 2 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Through Hole | Polyester Thermoplastic | 2 | Copper Alloy | 116 | 58 | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | |
EDAC Inc. | Gold | Black | -40 °C | 105 ░C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder Eyelet(s) | 2 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Board Edge Straddle Mount | Polyester Thermoplastic | 2 | Copper Alloy | 116 | 58 | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | Card Extender |
EDAC Inc. | Gold | Black | -40 °C | 105 ░C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Solder Eyelet(s) | 2 | Board Edge Straddle Mount | Polyester Thermoplastic | 2 | Copper Alloy | 116 | 58 | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | Card Extender | |||
EDAC Inc. | Gold | Black | -40 °C | 105 ░C | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Wire Wrap | 2 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Through Hole | Polyester Thermoplastic | 2 | Copper Alloy | 116 | 58 | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 17.94 | |
Description
General part information
392-116 Series
116 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
