Description
General part information

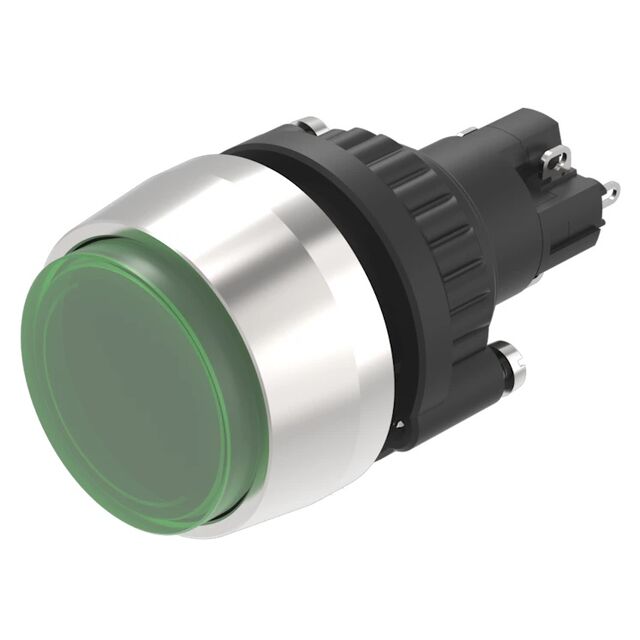

K14-271.122032
Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | K14-271.122032 |
|---|---|
| Actuator Type | Button, Round |
| Circuit | DPST-NO/NC |
| Color | Green |
| Color - Actuator/Cap | Green |
| Current Rating | 5 A, 2 A |
| Electrical Life (Cycles) | 50000 |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 28 VAC |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 22.3 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off, Off-On |
| Termination Style | Solder Lug |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
