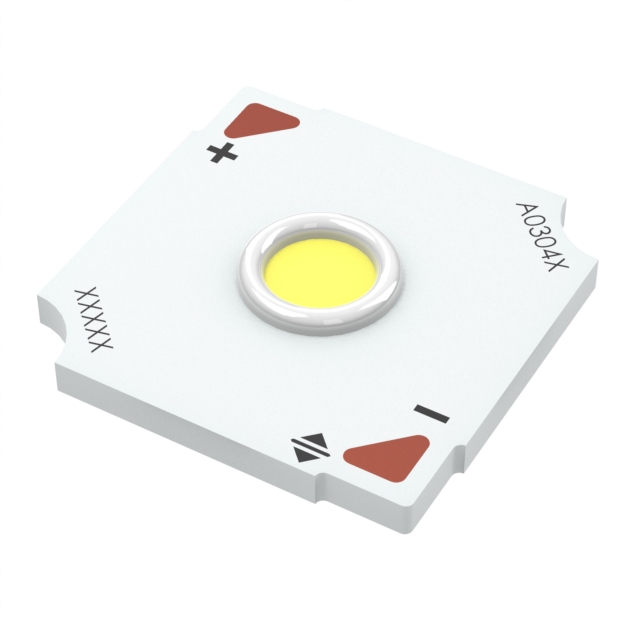

CHA0304-R160-000G0H0A40G

Active

Cree LED

XLAMP CHA LIGHT EMITTING DIODE WHITE

Search across all available documentation for this part.

Active

Cree LED

XLAMP CHA LIGHT EMITTING DIODE WHITE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CHA0304-R160-000G0H0A40G	CHA0304 Series

CCT (K)	4000 K	2700 - 4000 K
Color	Neutral, White	Neutral, White, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	80	80 - 95
Current - Max [Max]	300 mA	300 mA
Current - Test	175 mA	175 mA
Height [z]	1.5 mm	1.5 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	3.3 mm	3.3 mm
Lumens/Watt @ Current - Test	-	122 lm/W
Luminous Flux @ Current/Temperature	475 lm	475 lm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	114 °	114 °
Voltage - Forward (Vf) (Typ)	21 V	21 V

XLAMP CHA LED WHITE PRO9

Part	Lens Type	Viewing Angle	Height [z]	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Configuration	CCT (K)	Type	Current - Max [Max]	Color	Temperature - Test	Current - Test	Luminous Flux @ Current/Temperature
Cree LED CHA0304-R160-00PG0U0A40G	Flat	114 °	1.5 mm	90	3.3 mm	21 V	Square	4000 K	Chip On Board (COB)	300 mA	Neutral, White	85 °C	175 mA
Cree LED CHA0304-R160-00PG0U0A27G	Flat	114 °	1.5 mm	90	3.3 mm	21 V	Square	2700 K	Chip On Board (COB)	300 mA	Warm, White	85 °C	175 mA
Cree LED CHA0304-R160-00PG0Z0AL7C	Flat	114 °	1.5 mm	95	3.3 mm	21 V	Square		Chip On Board (COB)	300 mA		85 °C	175 mA
Cree LED CHA0304-R160-00PG0U0A30H	Flat	114 °	1.5 mm	90	3.3 mm	21 V	Square		Chip On Board (COB)	300 mA	Warm, White	85 °C	175 mA
Cree LED CHA0304-R160-00PG0U0A30Q	Flat	114 °	1.5 mm	90	3.3 mm	21 V	Square		Chip On Board (COB)	300 mA	Warm, White	85 °C	175 mA
Cree LED CHA0304-R160-00PG0Z0A27H	Flat	114 °	1.5 mm	95	3.3 mm	21 V	Square	2700 K	Chip On Board (COB)	300 mA	Warm, White	85 °C	175 mA
Cree LED CHA0304-R160-00PG0Z0A35H	Flat	114 °	1.5 mm	95	3.3 mm	21 V	Square	3500 K	Chip On Board (COB)	300 mA	Warm, White	85 °C	175 mA
Cree LED CHA0304-R160-000G0H0A40G	Flat	114 °	1.5 mm	80	3.3 mm	21 V	Square	4000 K	Chip On Board (COB)	300 mA	Neutral, White	85 °C	175 mA	475 lm
Cree LED CHA0304-R160-00PG0U0A27H	Flat	114 °	1.5 mm	90	3.3 mm	21 V	Square	2700 K	Chip On Board (COB)	300 mA	Warm, White	85 °C	175 mA
Cree LED CHA0304-R160-00PG0U0A35G	Flat	114 °	1.5 mm	90	3.3 mm	21 V	Square	3500 K	Chip On Board (COB)	300 mA	Warm, White	85 °C	175 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CHA0304 White, Neutral Square
