83562 0021000

Active

Belden Inc.

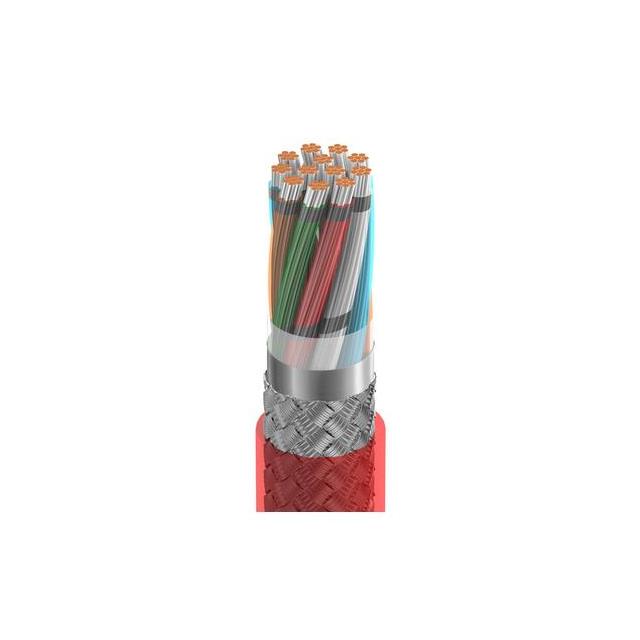

CABLE 12CON 22AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 12CON 22AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83562 0021000

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	5.94 mm
Jacket (Insulation) Diameter [diameter]	0.234 "
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Usage	Number of Conductors	Wire Gauge	Ratings	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Shield Material	Shield Type	Jacket (Insulation) Material	Length	Length	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage
Belden Inc. 83562 0021000	Fluorinated Ethylene-Propylene (FEP)	200 °C	-70 °C	Audio Control Instrumentation	12	22 AWG	UL Style CMP	300 V	0.015 in	0.381 mm	Copper Tinned	Aluminum Copper Tinned	Braid Foil	Fluorinated Ethylene-Propylene (FEP) Plenum	1000 ft	304.8 m	Red	5.94 mm	0.234 "	Multi-Conductor	7	30 AWG	85 % 100 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 18.12

General part information

12 Conductor Multi-Conductor Cable Red 22 AWG Foil, Braid 1000.0' (304.8m)
