PE45828
ActivePasternack
2.2-5(M) RA SOLDER ATTCH
PE45828
ActivePasternack
2.2-5(M) RA SOLDER ATTCH
Description
General part information
PE45828

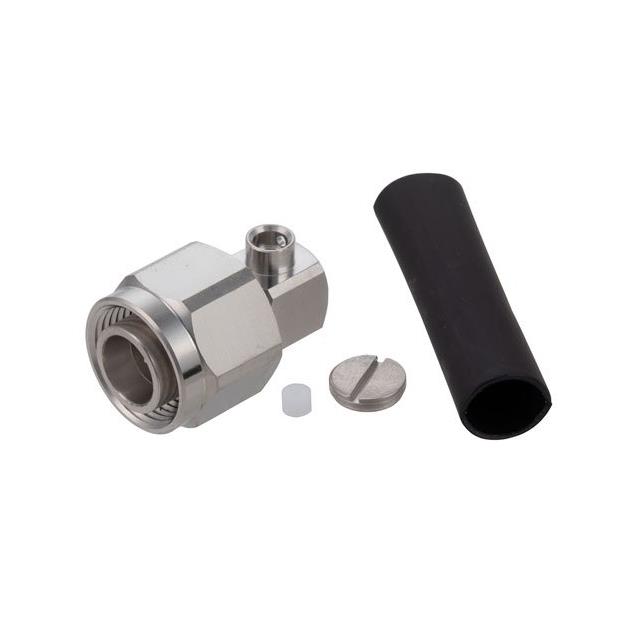

2.2/5 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE45828 |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | PE-SR402AL, PE-SR402FLJ, PE-SR402FL, RG402 |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | 2.2/5 |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Features | Low PIM |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Solder |
