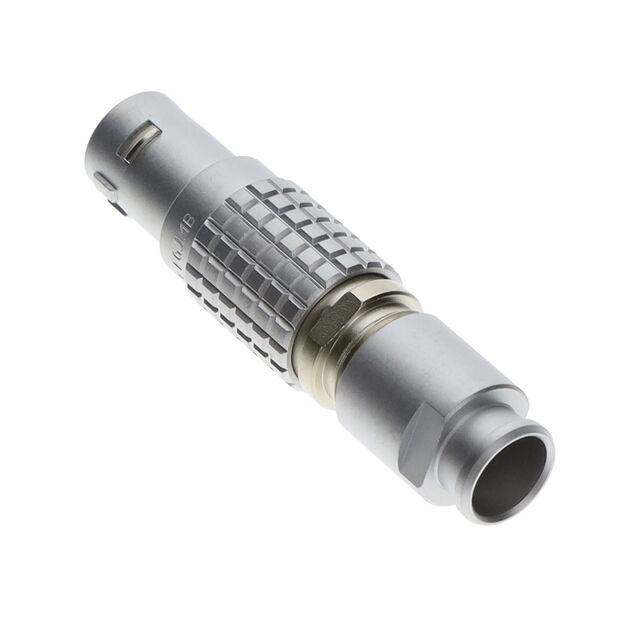

Specification	FGJ.1B.304.CLLD72Z

Backshell Material	Brass
Cable Opening (Max)	0.283 in
Cable Opening (Min)	0.244 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 µin
Contact Material	Bronze
Current Rating	10 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature (Max)	250 °C
Operating Temperature (Min)	-55 °C
Orientation	J
Plating	Chrome
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	304
Shell Size - Insert	304
Shielding	Shielded
Termination	Solder Cup

FGJ.1B Series

Circular Push Pull Connectors BEND RELIEF

...

Part	Primary Material	Cable Opening (Max)	Cable Opening (Min)	Number of Positions	Insert Material	Contact Material	Plating	Backshell Material	Color	Contact Finish Thickness - Mating	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Shielding	Mounting Type	Orientation	Material Flammability Rating	Contact Finish - Mating	Shell Finish	Shell Material	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Shell Size - Insert	Shell Size - Insert	Current Rating	Features	Contact Shape	Contact Size	Contact Type	Type	Note	Housing Color
LEMO FGJ.1B.306.CLLD42	Metal	0.165 in	0.122 in	6	PEEK Polyetheretherketone	Bronze	Chrome	Brass	Silver	59 µin	Dust Protected	IP50	Push-Pull	Shielded	Free Hanging (In-Line)	J	UL94 V-0	Gold	Chrome	Brass	Solder Cup	250 °C	-55 °C	Female Sockets Plug	306	306	7 A	Backshell
LEMO FGJ.1B.306.CLLD52	Metal	0.205 in	0.165 in	6	PEEK Polyetheretherketone	Bronze	Chrome	Brass	Silver	59 µin	Dust Protected	IP50	Push-Pull	Shielded	Free Hanging (In-Line)	J	UL94 V-0	Gold	Chrome	Brass	Solder Cup	250 °C	-55 °C	Female Sockets Plug	306	306	7 A	Backshell
LEMO FGJ.1B.305.CYZZ				5	PEEK Polyetheretherketone						Dust Protected	IP50	Detent Lock Push-Pull	Shielded	Free Hanging (In-Line)	J			Chrome	Brass		250 °C	-55 °C	Plug Housing	305	305		Backshell	Circular	0.9 mm	Crimp	For Female Sockets	Contacts Not Included	Silver
LEMO FGJ.1B.307.CLLZ	Metal			7	PEEK Polyetheretherketone	Bronze	Chrome	Brass	Silver	59 µin	Dust Protected	IP50	Push-Pull	Shielded	Free Hanging (In-Line)	J	UL94 V-0	Gold	Chrome	Brass	Solder Cup	250 °C	-55 °C	Female Sockets Plug	307	307	7 A	Backshell
LEMO FGJ.1B.306.CWLD72Z	Metal	0.283 in	0.244 in	6		Bronze	Chrome	Brass	Silver	59 µin	Dust Protected	IP50	Push-Pull	Shielded	Free Hanging (In-Line)	J		Gold	Chrome	Brass	Solder Cup	250 °C	-55 °C	Female Sockets Plug	306	306	7 A	Backshell
LEMO FGJ.1B.306.CLLD62Z	Metal	0.244 in	0.205 in	6	PEEK Polyetheretherketone	Bronze	Chrome	Brass	Silver	59 µin	Dust Protected	IP50	Push-Pull	Shielded	Free Hanging (In-Line)	J	UL94 V-0	Gold	Chrome	Brass	Solder Cup	250 °C	-55 °C	Female Sockets Plug	306	306	7 A	Backshell
LEMO FGJ.1B.303.CYMD72Z	Metal	0.283 in	0.244 in	3	PEEK Polyetheretherketone	Bronze	Chrome	Brass	Silver	59 µin	Dust Protected	IP50	Push-Pull	Shielded	Free Hanging (In-Line)	J	UL94 V-0	Gold	Chrome	Brass	Crimp	250 °C	-55 °C	Female Sockets Plug	303	303	12 A	Backshell
LEMO FGJ.1B.303.CLLD72	Metal	0.283 in	0.244 in	3	PEEK Polyetheretherketone	Bronze	Chrome	Brass	Silver	59 µin	Dust Protected	IP50	Push-Pull	Shielded	Free Hanging (In-Line)	J	UL94 V-0	Gold	Chrome	Brass	Solder Cup	250 °C	-55 °C	Female Sockets Plug	303	303	12 A	Backshell
LEMO FGJ.1B.310.CLLD52	Metal	0.205 in	0.165 in	10	PEEK Polyetheretherketone	Bronze	Chrome	Brass	Silver	59 µin	Dust Protected	IP50	Push-Pull	Shielded	Free Hanging (In-Line)	J	UL94 V-0	Gold	Chrome	Brass	Solder Cup	250 °C	-55 °C	Female Sockets Plug	310	310	2.5 A	Backshell
LEMO FGJ.1B.302.CLLD72	Metal	0.283 in	0.244 in	2	PEEK Polyetheretherketone	Bronze	Chrome	Brass	Silver	59 µin	Dust Protected	IP50	Push-Pull	Shielded	Free Hanging (In-Line)	J	UL94 V-0	Gold	Chrome	Brass	Solder Cup	250 °C	-55 °C	Female Sockets Plug	302	302	15 A	Backshell
