0612MTP188
ActiveKanebridge
MACH SCREW PAN HEAD 6-LOBE #6-32
0612MTP188
ActiveKanebridge
MACH SCREW PAN HEAD 6-LOBE #6-32
Description
General part information
0612MTP188

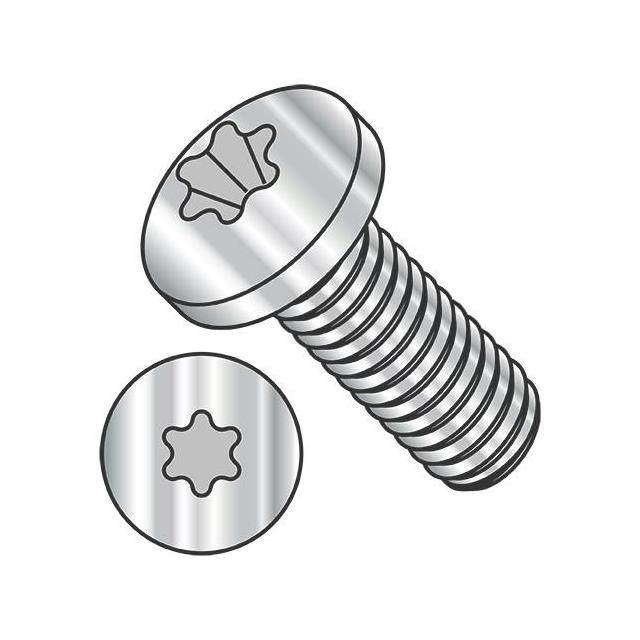

#6-32 Pan Head Machine Screw 6-Lobe Drive Stainless Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 0612MTP188 |
|---|---|
| Drive Type | 6-Lobe |
| Features | Standard |
| Head Diameter | 0.263 in |
| Head Height | 0.092 in |
| Length - Below Head | 0.75 in |
| Length - Overall | 0.842 in |
| Material | Stainless Steel |
| Plating | Plain |
| Screw Head Type | Pan Head |
| Thread Size (Max) | 32 mm |
| Thread Size (Min) | 6 mm |
| Type | Machine Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
