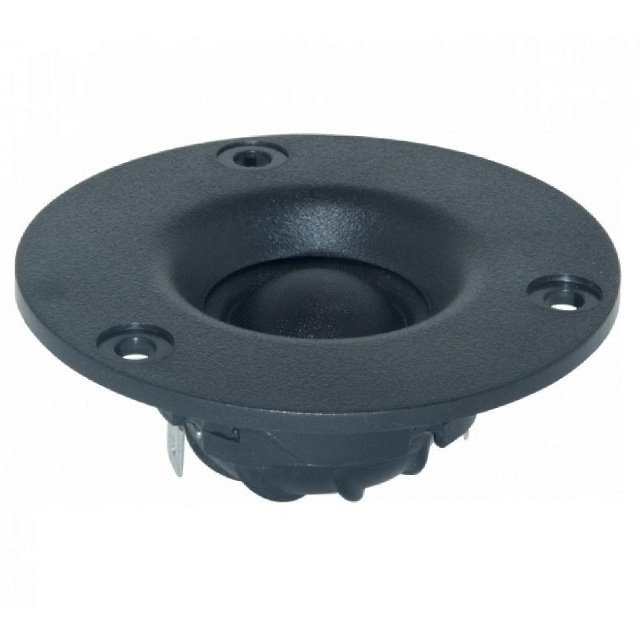

DX20SC00-04
ObsoletePeerless by Tymphany
SPEAKR 3.79OHM 80W TOP PT 86.9DB
DX20SC00-04
ObsoletePeerless by Tymphany
SPEAKR 3.79OHM 80W TOP PT 86.9DB
Description
General part information
DX20SC00-04
3.79 Ohms Tweeter Speaker 80 W 1 kHz ~ 20 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | DX20SC00-04 |
|---|---|
| Efficiency - dBA | 86.9 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Half Space Sensitivity |
| Frequency - Self Resonant | 1046.72 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 1 kHz |
| Height - Seated (Max) | 1.023 in |
| Impedance | 3.79 Ohms |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Rated | 80 W |
| Shape | Round |
| Size / Dimension Diameter | 2.61 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Tweeter |
