168.6585.5302
UnknownLITTELFUSE

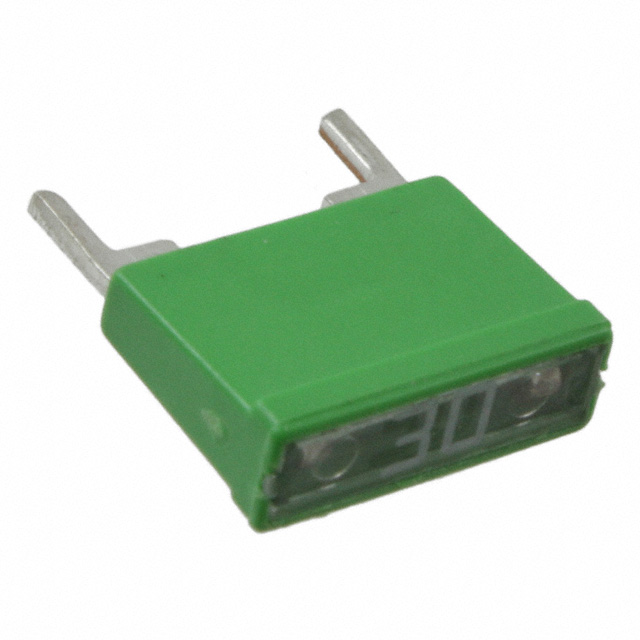

FUSE AUTOMOTIVE 30A 32VDC RADIAL
168.6585.5302
UnknownLITTELFUSE
FUSE AUTOMOTIVE 30A 32VDC RADIAL
Description
General part information
168.6585.5302
30 A AC 32 V DC Fuse Automotive Through Hole Radial, Box
Technical Specifications
Parameters and characteristics for this part
| Specification | 168.6585.5302 |
|---|---|
| Approval Agency | cULus |
| Breaking Capacity | 1 kA |
| Color | Green |
| Current Rating | 30 A |
| DC Cold Resistance | 0.0019 Ohms |
| Fuse Type | Automotive |
| Melting I²t | 1264 |
| Mounting Type | Through Hole |
| Package / Case | Radial, Box |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.335 in |
| Size / Dimension Length | 0.469 in |
| Size / Dimension Width | 0.15 in |
| Voltage Rating - DC | 32 V |
