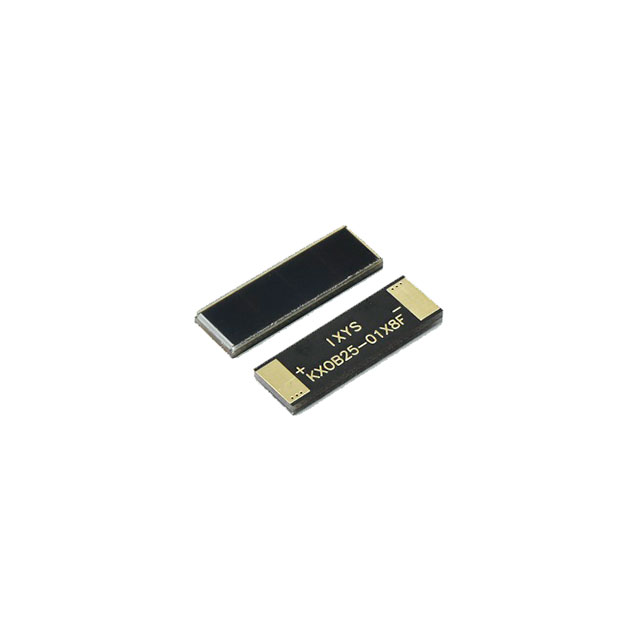

KXOB25-01X8F-TR

Active

ANYSOLAR Ltd

MONOCRYS SOLAR CELL 24.5MW 5.53V

Search across all available documentation for this part.

Active

ANYSOLAR Ltd

MONOCRYS SOLAR CELL 24.5MW 5.53V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Monocrystalline Solar Cell 24.5 mW 5.53 V

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

MONOCRYS SOLAR CELL 30.7MW 690MV

Part	Voltage - Open Circuit	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage @ Pmpp	Package / Case	Current - Short Circuit (Isc)	Current @ Pmpp	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts) - Max [Max]	Voltage @ Pmpp [custom]	Voltage @ Pmpp [custom]
ANYSOLAR Ltd KXOB25-14X1F-TR	690 mV	Monocrystalline	90 °C	-40 °C	560 mV	Cells	58.6 mA	55 mA	1.8 mm	8 mm	0.071 in	23 mm	0.906 in	0.315 in	30.7 mW
ANYSOLAR Ltd KXOB25-04X3F-TR	2.07 V	Monocrystalline	90 °C	-40 °C		Cells	14 mA	13.2 mA							22 mW	1.67 V
ANYSOLAR Ltd KXOB25-02X8F-TB	5.53 V	Monocrystalline	90 °C	-40 °C		Cells	6.3 mA	5.9 mA	1.8 mm	8 mm	0.071 in	23 mm	0.906 in	0.315 in	26.3 mW		4.46 V
ANYSOLAR Ltd KXOB25-12X1F-TB	690 mV	Monocrystalline	90 °C	-40 °C	560 mV	Cells	46.7 mA	43.9 mA							24.5 mW
ANYSOLAR Ltd KXOB25-02X8F-TR	5.53 V	Monocrystalline	90 °C	-40 °C		Cells	6.3 mA	5.9 mA	1.8 mm	8 mm	0.071 in	23 mm	0.906 in	0.315 in	26.3 mW		4.46 V
ANYSOLAR Ltd KXOB25-12X1F-TR	690 mV	Monocrystalline	90 °C	-40 °C	560 mV	Cells	46.7 mA	43.9 mA							24.5 mW
ANYSOLAR Ltd KXOB25-01X8F-TR	5.53 V	Monocrystalline	90 °C	-40 °C		Cells	5.9 mA	5.5 mA							24.5 mW		4.46 V
ANYSOLAR Ltd KXOB25-01X8F-TB	5.53 V	Monocrystalline	90 °C	-40 °C		Cells	5.9 mA	5.5 mA							24.5 mW		4.46 V
ANYSOLAR Ltd KXOB25-04X3F-TB	2.07 V	Monocrystalline	90 °C	-40 °C		Cells	14 mA	13.2 mA							22 mW	1.67 V
