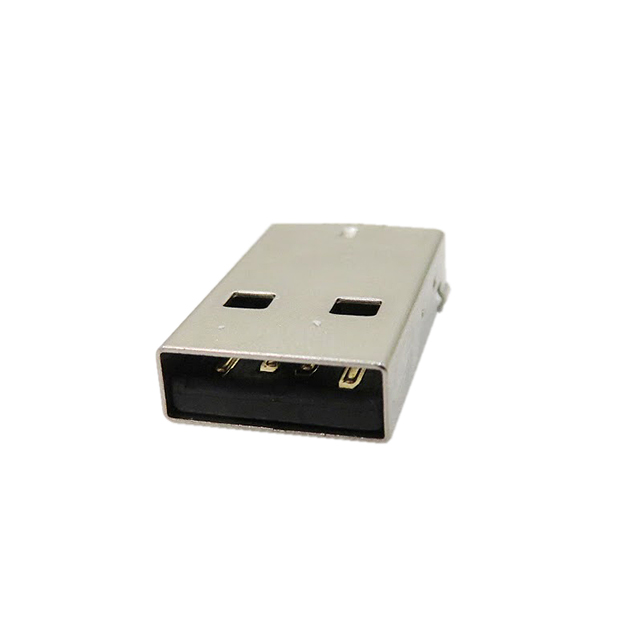

USB-AP-S-RA - USB-AP-S-RA

USB-AP-S-RA

Active
Adam Tech

USB TYPE A PLUG SINGLE R/A PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications+1
USB-AP-S-RA - USB-AP-S-RA

USB-AP-S-RA

Active
Adam Tech

USB TYPE A PLUG SINGLE R/A PCB

Deep-Dive with AI

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications+1

Technical Specifications

Parameters and characteristics for this part

SpecificationUSB-AP-S-RA
Connector TypeUSB-A (USB TYPE-A)
Contact FinishGold
GenderPlug
Insulation ColorBlack
Material Flammability RatingUL94 V-0
Mounting FeatureHorizontal
Mounting TypeThrough Hole, Right Angle
Number of Contacts [custom]4
Number of Ports1
Operating Temperature [Max]60 °C
Operating Temperature [Min]-20 C
Shell/Shielding MaterialSteel
ShieldingShielded
SpecificationsUSB 2.0
TerminationSolder
Voltage - Rated30 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 0.56
10$ 0.43
25$ 0.39
40$ 0.36
80$ 0.34
230$ 0.30
440$ 0.28
945$ 0.26
2400$ 0.23

Description

General part information

USB-AP-S-RA

USB-A (USB TYPE-A) USB 2.0 Plug Connector 4 Position Through Hole, Right Angle
