General part information
09675258715

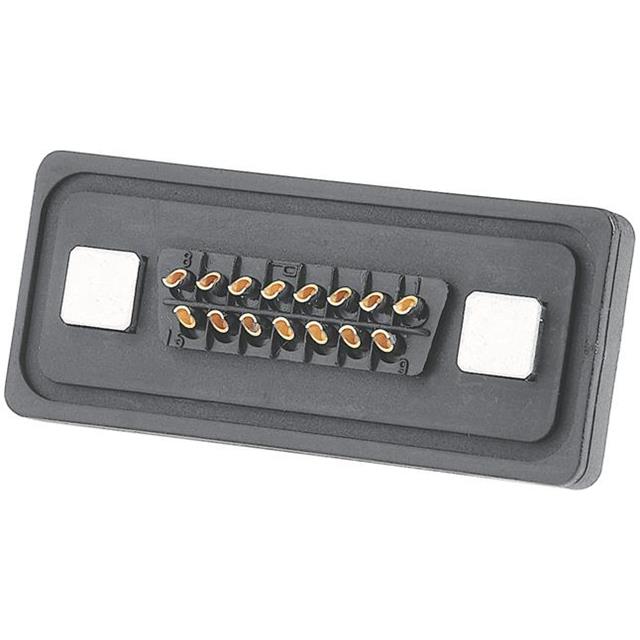

25 Position D-Sub Receptacle, Female Sockets Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 09675258715 |
|---|---|
| Connector Layout | DB, B |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold-Palladium, Gold |
| Contact Finish Thickness | 30 µin |
| Contact Type | Signal |
| Current Rating | 5 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Finish | Tin Plated |
| Flange Feature | Shell (M3), Housing |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Shell Material | Brass |
| Shell Size | 3 |
| Termination | Solder Cup |
| Wire Gauge | 20 AWG |
