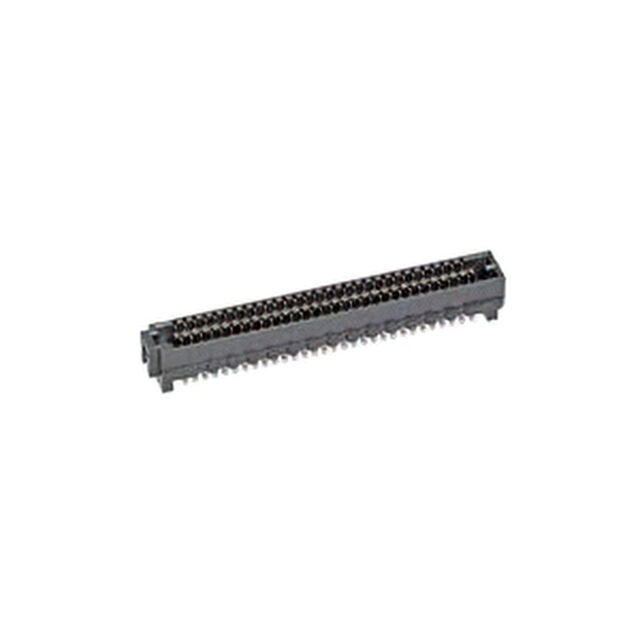

Specification	0465573345

Connector Type	High Density Array, FEMALE
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Board Guide
Height Above Board	0.258 in
Mated Stacking Height Options	9.5mm, 13.5mm, 11.5mm, 11mm, 8.5mm, 10mm, 9mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	4
Pitch	0.05 in

046557 Series

Part	Number of Rows	Contact Finish	Features	Contact Finish Thickness	Mounting Type	Connector Type	Number of Positions	Height Above Board	Pitch	Mated Stacking Height Options
Molex 0465574345	4	Gold	Board Guide	30 µin	Surface Mount	FEMALE High Density Array	160	0.258 in	0.05 in	10mm 11.5mm 11mm 13.5mm 8.5mm 9.5mm 9mm
Molex 0465573545	4	Gold	Board Guide	30 µin	Surface Mount	FEMALE High Density Array	120	0.317 in	0.05 in	10.5mm 10mm 11.5mm 11mm 12.5mm 13mm 15mm
Molex 0465575245
Molex 0465573247	4	Gold	Board Guide	30 µin	Surface Mount	FEMALE High Density Array	120	0.238 in	0.05 in	10.5mm 11mm 13mm 8.5mm 8mm 9.5mm 9mm
Molex 0465574245	4	Gold	Board Guide	30 µin	Surface Mount	FEMALE High Density Array	160	0.238 in	0.05 in	10.5mm 11mm 13mm 8.5mm 8mm 9.5mm 9mm
Molex 0465572445	4	Gold	Board Guide	30 µin	Surface Mount	FEMALE High Density Array	80	0.295 in	0.05 in	10.5mm 10mm 11mm 12.5mm 12mm 14.5mm 9.5mm
Molex 0465573547	4	Gold	Board Guide	30 µin	Surface Mount	FEMALE High Density Array	120	0.315 in	0.05 in	10.5mm 10mm 11.5mm 11mm 12.5mm 13mm 15mm
Molex 0465572145	4	Gold	Board Guide	30 µin	Surface Mount	FEMALE High Density Array	80	0.199 in	0.05 in	10mm 12mm 7.5mm 7mm 8.5mm 8mm 9.5mm
Molex 0465577145	4	Gold	Board Guide	30 µin	Surface Mount	FEMALE High Density Array	100	0.199 in	0.05 in	10mm 12mm 7.5mm 7mm 8.5mm 8mm 9.5mm
Molex 0465573145	4	Gold	Board Guide	30 µin	Surface Mount	FEMALE High Density Array	120	0.199 in	0.05 in	10mm 12mm 7.5mm 7mm 8.5mm 8mm 9.5mm
