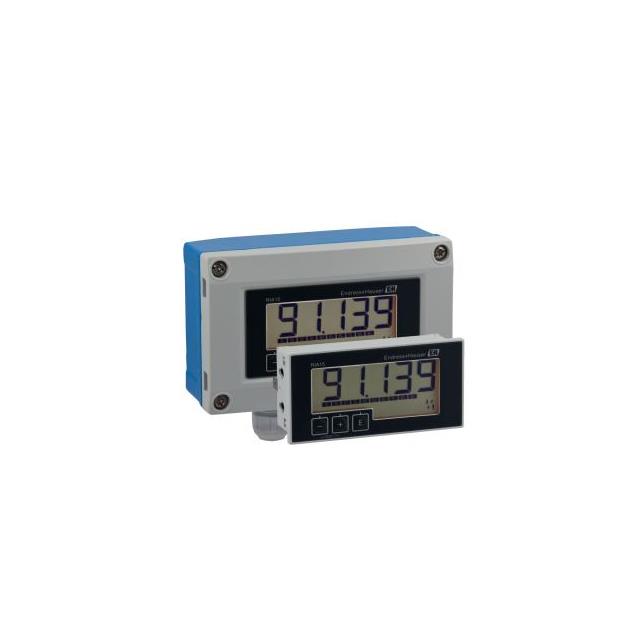

RIA15-AAB1
ActiveEndress+Hauser
DISPLAY FIELD HOUSING ALU 4-20MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RIA15-AAB1
ActiveEndress+Hauser
DISPLAY FIELD HOUSING ALU 4-20MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RIA15-AAB1 | RIA15 Series |
|---|---|---|
| Display Characters - Height [z] | 0.669 in | 0.669 in |
| Display Characters - Height [z] | 17 mm | 17 mm |
| Display Type | LCD - Black Characters, Backlight | LCD - Black Characters, Backlight |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Measuring Type | Current | Current |
| Mounting Type | DIN Rail | DIN Rail |
| Number of Characters Per Row | 5 | 5 |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Panel Cutout Dimensions [x] | 91.95 mm | 91.95 mm |
| Panel Cutout Dimensions [y] | 44.96 mm | 44.96 mm |
| Termination Style | Connector | Connector |
| Type | Ammeter | Ammeter |
| Voltage - Supply | Loop Power | Loop Power |
| Voltage - Supply | - | 2.9 VDC |
| Voltage - Supply | - | 1.9 VDC |
RIA15 Series
DISPLAY PANEL 4-20MA
| Part | Voltage - Supply | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Operating Temperature [Min] | Operating Temperature [Max] | Display Characters - Height [z] | Display Characters - Height [z] | Ingress Protection | Termination Style | Type | Display Type | Mounting Type | Number of Characters Per Row | Measuring Type | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Endress+Hauser RIA15-AAA1 | Loop Power | 91.95 mm | 44.96 mm | -40 °C | 60 °C | 0.669 in | 17 mm | IP65 - Dust Tight, Water Resistant | Connector | Ammeter | LCD - Black Characters, Backlight | DIN Rail | 5 | Current | ||
Endress+Hauser RIA15-AAA2 | 91.95 mm | 44.96 mm | -40 °C | 60 °C | 0.669 in | 17 mm | IP65 - Dust Tight, Water Resistant | Connector | Ammeter | LCD - Black Characters, Backlight | DIN Rail | 5 | Current | 2.9 VDC | 1.9 VDC | |
Endress+Hauser RIA15-AAB1 | Loop Power | 91.95 mm | 44.96 mm | -40 °C | 60 °C | 0.669 in | 17 mm | IP65 - Dust Tight, Water Resistant | Connector | Ammeter | LCD - Black Characters, Backlight | DIN Rail | 5 | Current |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 404.56 | |
Description
General part information
RIA15 Series
Ammeter LCD - Black Characters, Backlight Display DIN Rail
