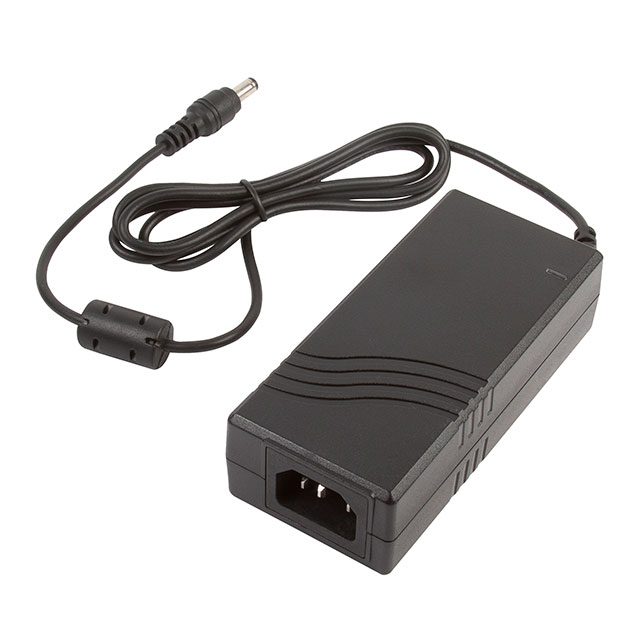

VEC50US24

Active

XP Power

AC/DC POWER SUPPLY, 1 OUTPUT, 50 W, 24 V, 2.08 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

VEC50US24

Active

XP Power

AC/DC POWER SUPPLY, 1 OUTPUT, 50 W, 24 V, 2.08 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VEC50US24	VEC50 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, CE, TUV	CB, CE, TUV
Cord Length	1.2 m	1.2 m
Cord Length	47.2 in	47.2 in
Current - Output (Max)	-	2.63 A
Current - Output (Max) [Max]	2.08 A	2.08 A
Efficiency	CoC Tier 2, Level VI	CoC Tier 2, Level VI
Form	Desktop (Class I)	Desktop (Class I)
Input Connector	IEC 320-C14	IEC 320-C14
Input Type	Cord	Cord
No Load Power Consumption [Max]	150 mW	150 mW
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm	2.5 - 5.5 mm
Output Connector [x]	11 mm	11 mm
Polarization	Positive Center	Positive Center
Power (Watts)	50 W	50 W
Region Utilized	International	International
Size / Dimension [x]	116.3 mm	116.3 mm
Size / Dimension [x]	4.58 in	4.58 in
Size / Dimension [y]	52.4 mm	52.4 mm
Size / Dimension [y]	2.06 in	2.06 in
Size / Dimension [z]	31.3 mm	31.3 mm
Size / Dimension [z]	1.23 "	1.23 "
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	24 V	19 - 24 V
Weight	0.54 lb	0.54 lb
Weight	244.94 g	244.94 g

VEC50 Series

AC/DC POWER SUPPLY, 1 OUTPUT, 50 W, 24 V, 2.08 A

Part	Approval Agency	Standard Number	Region Utilized	Current - Output (Max) [Max]	Cord Length	Cord Length	Voltage - Output	Efficiency	Input Connector	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Form	Output Connector	Output Connector [diameter]	Output Connector [x]	Power (Watts)	Input Type	Polarization	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	No Load Power Consumption [Max]	Current - Output (Max)
XP Power VEC50US24	CB, CE, TUV	62368-1	International	2.08 A	1.2 m	47.2 in	24 V	CoC Tier 2, Level VI	IEC 320-C14	31.3 mm	116.3 mm	52.4 mm	4.58 in	2.06 in	1.23 "	90 VAC	264 VAC	Desktop (Class I)	Barrel Plug	2.5 mm, 5.5 mm	11 mm	50 W	Cord	Positive Center	ITE (Commercial)	65 °C	0 °C	0.54 lb	244.94 g	150 mW
XP Power VEC50US19	CB, CE, TUV	62368-1	International		1.2 m	47.2 in	19 V	CoC Tier 2, Level VI	IEC 320-C14	31.3 mm	116.3 mm	52.4 mm	4.58 in	2.06 in	1.23 "	90 VAC	264 VAC	Desktop (Class I)	Barrel Plug	2.5 mm, 5.5 mm	11 mm	50 W	Cord	Positive Center	ITE (Commercial)	65 °C	0 °C	0.54 lb	244.94 g	150 mW	2.63 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 24.70
		5	$ 23.96
		10	$ 23.22
		25	$ 22.23
		100	$ 20.75
Newark	Each	1	$ 24.70
		5	$ 23.96
		10	$ 23.22
		25	$ 22.23
		100	$ 20.75

Description

General part information

VEC50 Series

VEC50 series is a low cost desktop AC-DC power supply. The VEC50 is energy efficiency level VI with 0.15W standby power. This desktop/external AC-DC power supply is limited power source (LPS) approved and are designed for high volume/low cost applications. The DC lead is fitted with a centre positive 5.5 x 2.5mm barrel jack connector.
