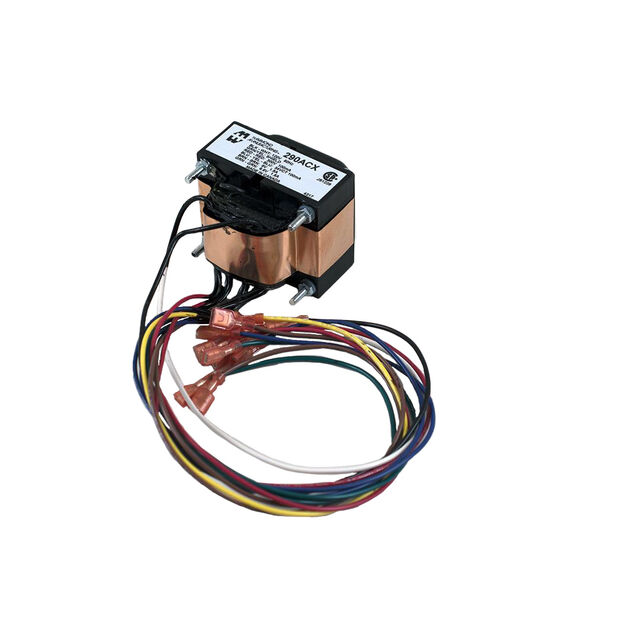

Specification	290ACX

Center Tap	Yes
Current - Output (Max) Options	100mA, 1.5A
Height - Seated (Max)	76.2 mm
Mounting Type	Chassis Mount
Primary Winding(s)	Single
Secondary Winding(s) Count	4 count
Size / Dimension Length	2.5 in
Size / Dimension Width	73.66 mm
Termination Style	Wire Leads
Voltage - Isolation	2000 V
Voltage - Primary	120 V
Voltage - Secondary (Full Load)	34V, 6.6V, 300V, 9V
Voltage - Secondary (Full Load) (Option 1)	300 V, 300 V, 300 V
Voltage - Secondary (Full Load) (Option 2)	34 V, 34 V, 34 V
Voltage - Secondary (Full Load) (Option 3)	9 V, 9 V, 9 V
Voltage - Secondary (Full Load) (Option 4)	6.6 V, 6.6 V, 6.6 V
