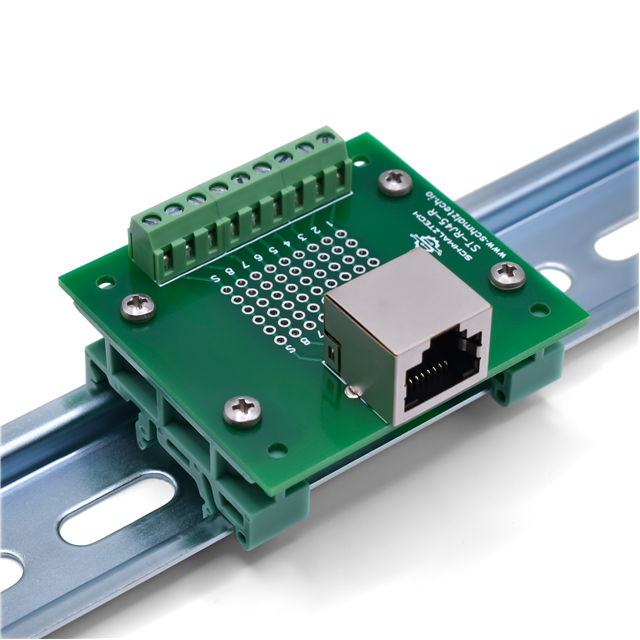

ST-RJ45-R-DIN

Active

SchmalzTech, LLC

RJ45 BREAKOUT BOARD W/ DIN CLIPS

Search across all available documentation for this part.

Active

SchmalzTech, LLC

RJ45 BREAKOUT BOARD W/ DIN CLIPS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ST-RJ45-R-DIN	ST-RJ45 Series

Board Thickness	1.6 mm	1.6 mm
Board Thickness	0.063 in	0.063 in
Material	FR4 Epoxy Glass	FR4 Epoxy Glass
Number of Positions	8	8 - 9
Package Accepted	RJ45	RJ45
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Proto Board Type	Connector to Terminal Block	Connector to Plated Through Hole, Connector to Terminal Block
Size / Dimension	-	2.2 in
Size / Dimension	-	2 "
Size / Dimension [x]	55.88 mm	55.88 - 59.18 mm
Size / Dimension [x]	2.2 in	2.2 - 2.33 in
Size / Dimension [y]	45.72 mm	45.72 - 50.8 mm
Size / Dimension [y]	1.8 in	1.8 - 1.89 in

RJ45 PASS-THROUGH BREAKOUT BOARD

Part	Material	Package Accepted	Pitch [x]	Pitch [x]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Proto Board Type	Number of Positions	Board Thickness	Board Thickness	Size / Dimension [x]	Size / Dimension [y]
SchmalzTech, LLC ST-RJ45-PASS-R-DIN	FR4 Epoxy Glass	RJ45	2.54 mm	0.1 in	2.2 in	55.88 mm	2 "	50.8 mm	Connector to Plated Through Hole	9	1.6 mm	0.063 in
SchmalzTech, LLC ST-RJ45-S-E-CHS		RJ45	2.54 mm	0.1 in		59.18 mm		48.01 mm	Connector to Terminal Block	9			2.33 in	1.89 in
SchmalzTech, LLC ST-RJ45-PASS-R-FT	FR4 Epoxy Glass	RJ45	2.54 mm	0.1 in	2.2 in	55.88 mm	2 "	50.8 mm	Connector to Plated Through Hole	9	1.6 mm	0.063 in
SchmalzTech, LLC ST-RJ45-R-DIN	FR4 Epoxy Glass	RJ45	2.54 mm	0.1 in		55.88 mm		45.72 mm	Connector to Terminal Block	8	1.6 mm	0.063 in	2.2 in	1.8 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RJ45 BREAKOUT BOARD W/ DIN CLIPS
