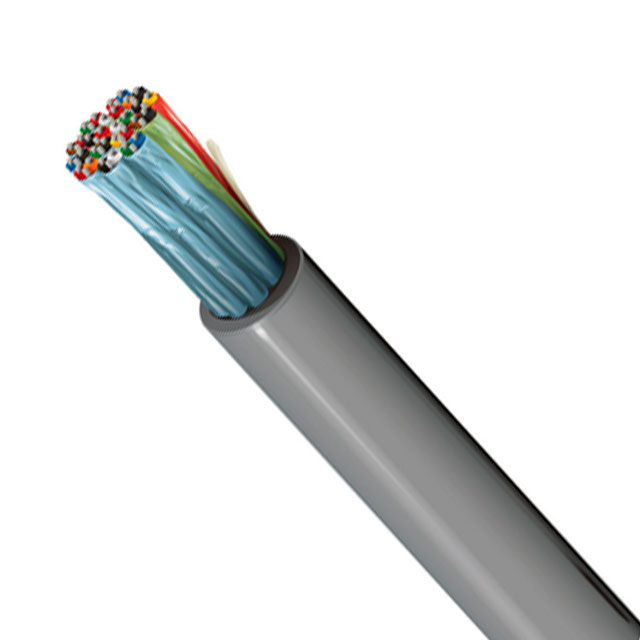

9877 060100

Active

Belden Inc.

MULTI-PAIR 24COND 20AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 24COND 20AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9877 060100

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.617 in
Jacket (Insulation) Diameter [diameter]	15.67 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.27 mm
Jacket (Insulation) Thickness	0.05 in
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	24
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	20 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Jacket (Insulation) Material	Length [x]	Length [x]	Shield Type	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Jacket Color	Number of Conductors	Conductor Material	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge
Belden Inc. 9877 060100	1.27 mm	0.05 in	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	Foil	Multi-Pair	-20 C	80 C	Polypropylene (PP)	Chrome	24	Copper Tinned	Aluminum	28	7	100 %	Drain Wire	0.617 in	15.67 mm	20 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 (12 Pair Twisted) Conductor Multi-Pair Cable Chrome 20 AWG Foil 100.0' (30.5m)
