Specification	1723164314

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Length - Post	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Board Guide, Glow Wire Compliant
Insulation Color	Natural
Insulation Height	0.534 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.138 in
Row Spacing - Mating	0.181 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	600 V
Voltage Rating (Type)	DC

172316 Series

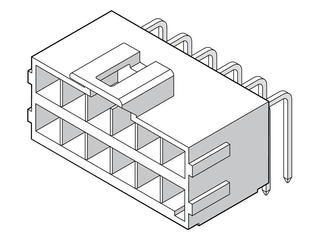

Ultra-Fit Right-Angle Header with Solder Nail, 3.50mm Pitch, Dual Row, 6 Circuits, 0.76µm Gold (Au) Plating, Black, Glow-Wire Capable

Part	Pitch - Mating	Fastening Type	Contact Type	Voltage Rating	Voltage Rating (Type)	Operating Temperature (Min)	Operating Temperature (Max)	Number of Rows	Row Spacing - Mating	Contact Shape	Number of Positions Loaded	Style	Material Flammability Rating	Connector Type	Contact Material	Insulation Material	Current Rating	Current Rating	Number of Positions	Shrouding	Mounting Type	Termination	Applications	Features	Contact Finish - Mating	Contact Length - Post	Insulation Height	Contact Finish - Post	Contact Finish Thickness - Mating	Insulation Color	Contact Finish Thickness - Post
Molex 1723168310	0.138 in	Latch Holder	Male Pin	600 V	DC	-40 °C	105 °C	2	0.181 in	Square	All	Board Cable/Wire	UL94 V-0	Header	Copper Alloy	Liquid Crystal Polymer (LCP)	0 A	Varies by Wire Gauge	10	Shrouded - 4 Wall	Right Angle Through Hole	Solder	Automotive General Purpose Industrial Lighting Medical Military Telecommunications
Molex 1723161312	0.138 in	Latch Holder	Male Pin	600 V	DC	-40 °C	120 °C	2	0.181 in	Square	All	Board Cable/Wire	UL94 V-0	Header	Copper Alloy	Liquid Crystal Polymer (LCP)			12	Shrouded - 4 Wall	Right Angle Through Hole	Solder	Automotive General Purpose Industrial Lighting Medical Military Telecommunications	Board Guide	Gold	0.126 in	0.534 in	Tin	30 µin	Black	60 Ąin
Molex 1723162316	0.138 in	Latch Holder	Male Pin	600 V	DC	-40 °C	120 °C	2	0.181 in	Square	All	Board Cable/Wire	UL94 V-0	Header	Copper Alloy	Liquid Crystal Polymer (LCP)			16	Shrouded - 4 Wall	Right Angle Through Hole	Solder	Automotive General Purpose Industrial Lighting Medical Military Telecommunications	Board Guide	Gold	0.126 in	0.534 in	Tin	30 µin	Natural	60 Ąin
Molex 1723161214	0.138 in	Latch Holder	Male Pin	600 V	DC	-40 °C	120 °C	2	0.181 in	Square	All	Board Cable/Wire	UL94 V-0	Header	Copper Alloy	Liquid Crystal Polymer (LCP)			14	Shrouded - 4 Wall	Right Angle Through Hole	Solder	Automotive General Purpose Industrial Lighting Medical Military Telecommunications	Board Guide	Gold	0.126 in	0.534 in	Tin	15 µin	Black	60 Ąin
Molex 1723162312	0.138 in	Latch Holder	Male Pin	600 V	DC	-40 °C	120 °C	2	0.181 in	Square	All	Board Cable/Wire	UL94 V-0	Header	Copper Alloy	Liquid Crystal Polymer (LCP)			12	Shrouded - 4 Wall	Right Angle Through Hole	Solder	Automotive General Purpose Industrial Lighting Medical Military Telecommunications	Board Guide	Gold	0.126 in	0.534 in	Tin	30 µin	Natural	60 Ąin
Molex 1723161314	0.138 in	Latch Holder	Male Pin	600 V	DC	-40 °C	120 °C	2	0.181 in	Square	All	Board Cable/Wire	UL94 V-0	Header	Copper Alloy	Liquid Crystal Polymer (LCP)			14	Shrouded - 4 Wall	Right Angle Through Hole	Solder	Automotive General Purpose Industrial Lighting Medical Military Telecommunications	Board Guide	Gold	0.126 in	0.534 in	Tin	30 µin	Black	60 Ąin
Molex 1723161208	0.138 in	Latch Holder	Male Pin	600 V	DC	-40 °C	120 °C	2	0.181 in	Square	All	Board Cable/Wire	UL94 V-0	Header	Copper Alloy	Liquid Crystal Polymer (LCP)			8	Shrouded - 4 Wall	Right Angle Through Hole	Solder	Automotive General Purpose Industrial Lighting Medical Military Telecommunications	Board Guide	Gold	0.126 in	0.534 in	Tin	15 µin	Black	60 Ąin
Molex 1723161316	0.138 in	Latch Holder	Male Pin	600 V	DC	-40 °C	120 °C	2	0.181 in	Square	All	Board Cable/Wire	UL94 V-0	Header	Copper Alloy	Liquid Crystal Polymer (LCP)			16	Shrouded - 4 Wall	Right Angle Through Hole	Solder	Automotive General Purpose Industrial Lighting Medical Military Telecommunications	Board Guide	Gold	0.126 in	0.534 in	Tin	30 µin	Black	60 Ąin
Molex 1723163306	0.138 in	Latch Holder	Male Pin	600 V	DC	-40 °C	105 °C	2	0.181 in	Square	All	Board Cable/Wire	UL94 V-0	Header	Copper Alloy	Liquid Crystal Polymer (LCP)	0 A	Varies by Wire Gauge	6	Shrouded - 4 Wall	Right Angle Through Hole	Solder	Automotive General Purpose Industrial Lighting Medical Military Telecommunications	Board Guide	Gold	0.126 in	0.534 in	Tin	30 µin	Black	60 Ąin
Molex 1723164210	0.138 in	Latch Holder	Male Pin	600 V	DC	-40 °C	105 °C	2	0.181 in	Square	All	Board Cable/Wire	UL94 V-0	Header	Copper Alloy	Liquid Crystal Polymer (LCP)	0 A	Varies by Wire Gauge	10	Shrouded - 4 Wall	Right Angle Through Hole	Solder	Automotive General Purpose Industrial Lighting Medical Military Telecommunications	Board Guide Glow Wire Compliant	Gold	0.126 in	0.534 in	Tin	15 µin	Natural	60 Ąin
