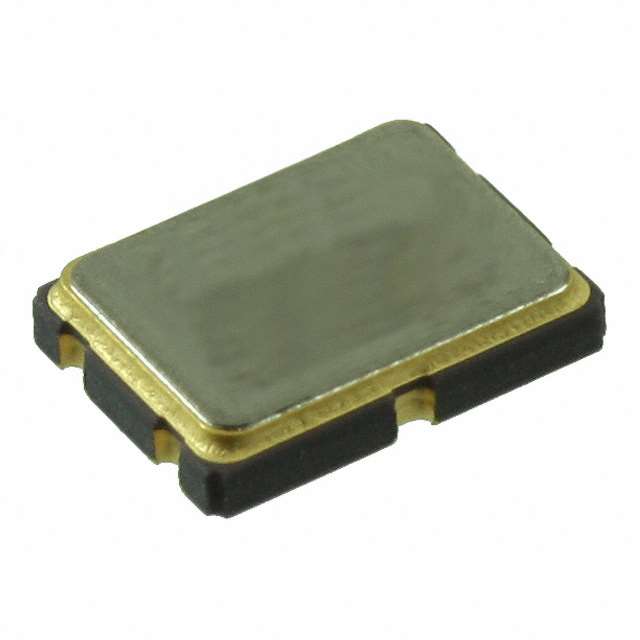

ECS-75SMF45A30B
45 MHz Center 1 kOhms Monolithic Crystal Filter Surface Mount 3dB 30 kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS-75SMF45A30B |
|---|---|
| Bandwidth | 30 kHz |
| Frequency - Center | 45 MHz |
| Height (Max) | 0.037 in |
| Impedance | 1 kOhms |
| Insertion Loss | 3 dB |
| Mounting Type | Surface Mount |
| Number of Poles | 4 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | No Lead, 6-SMD |
| Ripple (dB) | 1 dB |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
