3413.0327.26

Active

SCHURTER Inc.

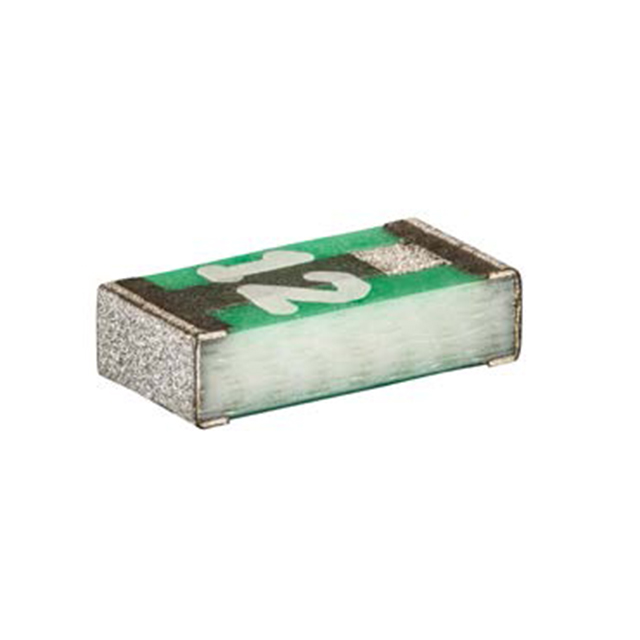

"UST 1206, 8 A, 63 VDC, 32 VAC, TIME-LAG T, PCS., FUSE, SMT, 3.2 X 1.6 MM\/

Search across all available documentation for this part.

Active

SCHURTER Inc.

"UST 1206, 8 A, 63 VDC, 32 VAC, TIME-LAG T, PCS., FUSE, SMT, 3.2 X 1.6 MM\/

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3413.0327.26	3413.0327 Series

Breaking Capacity @ Rated Voltage	100 A	100 A
Current Rating (Amps)	8 A	8 A
DC Cold Resistance	0.0063 Ohms	0.0063 - 0.0067 Ohms
Fuse Type	Board Mount	Board Mount
Melting I²t	14	14
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1206 (3216 Metric)	1206 (3216 Metric)
Response Time	Slow Blow	Slow Blow
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [x]	0.126 in	0.126 in
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Size / Dimension [z]	0.6 mm	0.6 mm
Size / Dimension [z]	0.024 "	0.024 "
Voltage Rating - AC	32 V	32 V
Voltage Rating - DC	63 VDC	63 VDC

FUSE BRD MNT 8A 32VAC 63VDC 1206

Part	Current Rating (Amps)	Voltage Rating - DC	Mounting Type	Melting I²t	DC Cold Resistance	Fuse Type	Package / Case	Voltage Rating - AC	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Response Time	Breaking Capacity @ Rated Voltage	Operating Temperature [Max]	Operating Temperature [Min]
SCHURTER Inc. 3413.0327.24	8 A	63 VDC	Surface Mount	14	0.0063 Ohms	Board Mount	1206 (3216 Metric)	32 V	0.6 mm	0.063 in	3.2 mm	0.126 in	0.024 "	1.6 mm	Slow Blow	100 A	90 °C	-55 °C
SCHURTER Inc. 3413.0327.26	8 A	63 VDC	Surface Mount	14	0.0063 Ohms	Board Mount	1206 (3216 Metric)	32 V	0.6 mm	0.063 in	3.2 mm	0.126 in	0.024 "	1.6 mm	Slow Blow	100 A	90 °C	-55 °C
SCHURTER Inc. 3413.0327.22	8 A	63 VDC	Surface Mount	14	0.0063 Ohms	Board Mount	1206 (3216 Metric)	32 V	0.6 mm	0.063 in	3.2 mm	0.126 in	0.024 "	1.6 mm	Slow Blow	100 A	90 °C	-55 °C
SCHURTER Inc. 3413.0327.11	8 A	63 VDC	Surface Mount	14	0.0067 Ohms	Board Mount	1206 (3216 Metric)	32 V	0.6 mm	0.063 in	3.2 mm	0.126 in	0.024 "	1.6 mm	Slow Blow	100 A	90 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 A 32 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
