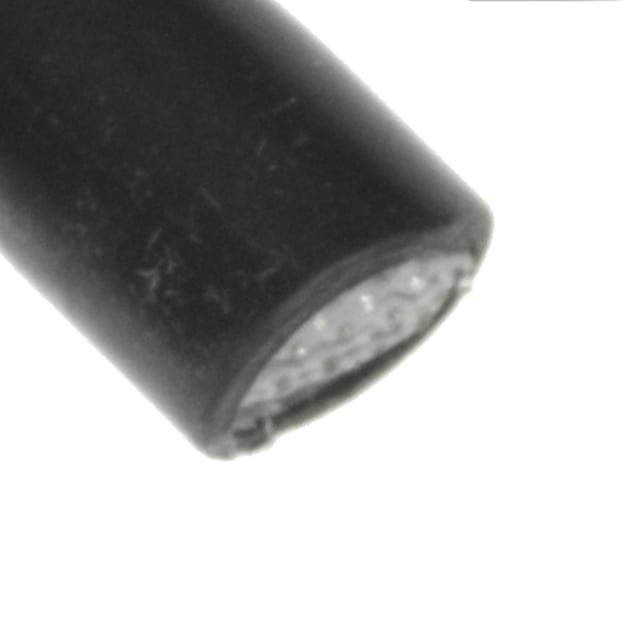

Specification	3759/20SO 300

Cable Type	Round Jacket, Flat Cable
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	36 AWG
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	300 ft
Number of Conductors	20
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-20 °C
Pitch	0.05 in
Ratings	Style, UL, 20267
Ribbon Width	0.95 in
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3759 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Cable Type	Wire Gauge	Features	Shielding	Voltage	Jacket Color	Number of Conductors	Conductor Strand Count	Conductor Strand Gauge	Ribbon Width	Pitch	Ratings	Jacket (Insulation) Material	Length	Conductor Material	First Conductor Mark	Insulation Resistance	Length	Spool Size
3M Electronic Specialty 3759/16SO 300	-20 °C	80 °C	Flat Cable Round Jacket	28 AWG	Zippable	Unshielded	300 V	Black	16	7 Strands	36 AWG	0.75 in	0.05 in	20267 Style UL	Poly-Vinyl Chloride (PVC)	300 ft	Copper Tinned	Red	10 GOhm
3M Electronic Specialty 3759/09SOSF	-20 °C	80 °C	Flat Cable Round Jacket	28 AWG	Splice Free	Unshielded	300 V	Black	9	7 Strands	36 AWG	0.4 in	0.05 in		Poly-Vinyl Chloride (PVC)		Copper Tinned	Red	10 GOhm
3M Electronic Specialty 3759/34 300	-20 °C	80 °C	Flat Cable Round Jacket	28 AWG	Zippable	Unshielded	300 V	Black	34	7 Strands	36 AWG	1.65 in	0.05 in	20267 Style UL	Poly-Vinyl Chloride (PVC)	300 ft	Copper Tinned	Red	10 GOhm
3M Electronic Specialty 3759/15SF	-20 °C	80 °C	Flat Cable Round Jacket	28 AWG	Splice Free Zippable	Unshielded	300 V	Black	15	7 Strands	36 AWG	0.7 in	0.05 in	20267 Style UL	Poly-Vinyl Chloride (PVC)	300 ft	Copper Tinned	Red	10 GOhm
3M Electronic Specialty 3759/60SO	-20 °C	80 °C	Flat Cable Round Jacket	28 AWG	Zippable	Unshielded	300 V	Black	60	7 Strands	36 AWG	2.95 in	0.05 in	20267 Style UL	Poly-Vinyl Chloride (PVC)	300 ft	Copper Tinned	Red	10 GOhm
3M Electronic Specialty 3759/26 300SF	-20 °C	80 °C	Flat Cable Round Jacket	28 AWG	Splice Free Zippable	Unshielded	300 V	Black	26	7 Strands	36 AWG	1.25 in	0.05 in	20267 Style UL	Poly-Vinyl Chloride (PVC)	300 ft	Copper Tinned	Red	10 GOhm
3M Electronic Specialty 3759/36 100SF	-20 °C	80 °C	Flat Cable Round Jacket	28 AWG	Splice Free Zippable	Unshielded	300 V	Black	36	7 Strands	36 AWG	1.75 in	0.05 in	20267 Style UL	Poly-Vinyl Chloride (PVC)	10 ft 100 ft	Copper Tinned	Red	10 GOhm
3M Electronic Specialty 3759/14 300	-20 °C	80 °C	Flat Cable Round Jacket	28 AWG	Zippable	Unshielded	300 V	Black	14	7 Strands	36 AWG	0.65 in	0.05 in	20267 Style UL	Poly-Vinyl Chloride (PVC)	300 ft	Copper Tinned	Red	10 GOhm	Enter Number of Feet in Order Quantity	300 ft
3M Electronic Specialty 3759/37 300SF	-20 °C	80 °C	Flat Cable Round Jacket	28 AWG	Splice Free Zippable	Unshielded	300 V	Black	37	7 Strands	36 AWG	1.8 in	0.05 in	20267 Style UL	Poly-Vinyl Chloride (PVC)	300 ft	Copper Tinned	Red	10 GOhm
3M Electronic Specialty 3759/15SO	-20 °C	80 °C	Flat Cable Round Jacket	28 AWG	Zippable	Unshielded	300 V	Black	15	7 Strands	36 AWG	0.7 in	0.05 in	20267 Style UL	Poly-Vinyl Chloride (PVC)	100 ft	Copper Tinned	Red	10 GOhm
