LFWLT200-1004

Active

EOS Power

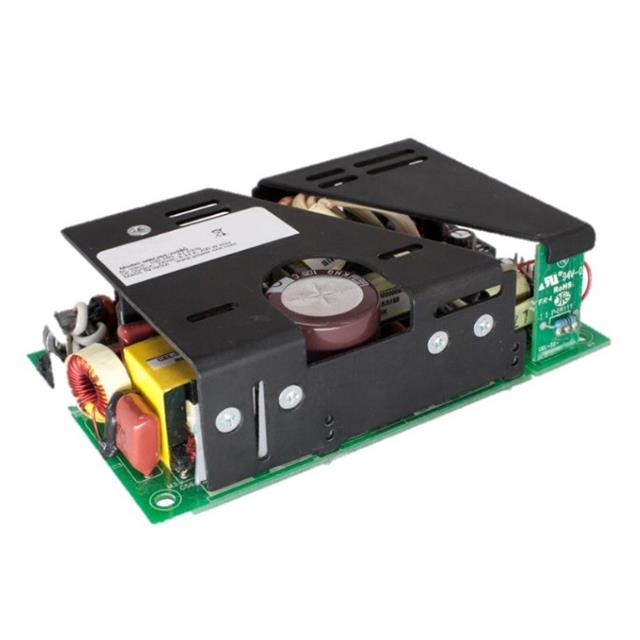

AC/DC CONVERTER 48V 160W

Deep-Dive with AI

Search across all available documentation for this part.

LFWLT200-1004

Active

EOS Power

AC/DC CONVERTER 48V 160W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LFWLT200-1004	WLT200 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, UL, CB, NEMKO	CE, UL, CB, NEMKO
Current - Output 1	3.33 A	3.33 - 16.67 A
Efficiency	86 %	86 %
Features	Standby Output, Universal Input, PFC, Adjustable Output, Remote On/Off, Remote Sense	Standby Output, Universal Input, PFC, Adjustable Output, Remote On/Off, Remote Sense
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	200 W, 160 W	83 - 200 W
Power (Watts)	-	130 W
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [z]	38.1 mm	38.1 mm
Size / Dimension [z]	1.5 "	1.5 "
Type	Enclosed	Enclosed
Voltage - Input [Max]	390 VDC, 264 VAC	264 - 390 VDC
Voltage - Input [Min]	90 VAC, 120 VDC	90 - 120 VAC
Voltage - Isolation	4.242 kV	4.242 kV
Voltage - Output 1	48 V	5 - 48 V

WLT200 Series

AC/DC CONVERTER 5V 83W

Part	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Current - Output 1	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Efficiency	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Type	Voltage - Isolation	Voltage - Output 1	Power (Watts)	Power (Watts)
EOS Power LFWLT200-1000	ITE (Commercial)	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Chassis Mount	16.67 A	Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	-20 °C	70 °C	1	86 %	CB, CE, NEMKO, UL	90 VAC, 120 VDC	264 VAC, 390 VDC	Enclosed	4.242 kV	5 V
EOS Power LFWLT200-1303	ITE (Commercial)	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Chassis Mount	6.67 A	Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	-20 °C	70 °C	1	86 %	CB, CE, NEMKO, UL	90 VAC, 120 VDC	264 VAC, 390 VDC	Enclosed	4.242 kV	24 V	160 W, 200 W
EOS Power LFWLT200-1305	ITE (Commercial)	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Chassis Mount	5.33 A	Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	-20 °C	70 °C	1	86 %	CB, CE, NEMKO, UL	90 VAC, 120 VDC	264 VAC, 390 VDC	Enclosed	4.242 kV	30 V	160 W, 200 W
EOS Power LFWLT200-1002	ITE (Commercial)	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Chassis Mount	10.67 A	Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	-20 °C	70 °C	1	86 %	CB, CE, NEMKO, UL	90 VAC, 120 VDC	264 VAC, 390 VDC	Enclosed	4.242 kV	15 V	160 W, 200 W
EOS Power LFWLT200-1003	ITE (Commercial)	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Chassis Mount	6.67 A	Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	-20 °C	70 °C	1	86 %	CB, CE, NEMKO, UL	90 VAC, 120 VDC	264 VAC, 390 VDC	Enclosed	4.242 kV	24 V	160 W, 200 W
EOS Power LFWLT200-1302	ITE (Commercial)	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Chassis Mount	10.67 A	Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	-20 °C	70 °C	1	86 %	CB, CE, NEMKO, UL	90 VAC, 120 VDC	264 VAC, 390 VDC	Enclosed	4.242 kV	15 V	160 W, 200 W
EOS Power LFWLT200-1004	ITE (Commercial)	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Chassis Mount	3.33 A	Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	-20 °C	70 °C	1	86 %	CB, CE, NEMKO, UL	90 VAC, 120 VDC	264 VAC, 390 VDC	Enclosed	4.242 kV	48 V	160 W, 200 W
EOS Power LFWLT200-1304	ITE (Commercial)	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Chassis Mount	3.33 A	Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	-20 °C	70 °C	1	86 %	CB, CE, NEMKO, UL	90 VAC, 120 VDC	264 VAC, 390 VDC	Enclosed	4.242 kV	48 V	160 W, 200 W
EOS Power LFWLT200-1300	ITE (Commercial)	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Chassis Mount	16.67 A	Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	-20 °C	70 °C	1	86 %	CB, CE, NEMKO, UL	90 VAC, 120 VDC	264 VAC, 390 VDC	Enclosed	4.242 kV	5 V	83 W	130 W
EOS Power LFWLT200-1301	ITE (Commercial)	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	Chassis Mount	13.33 A	Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	-20 °C	70 °C	1	86 %	CB, CE, NEMKO, UL	90 VAC, 120 VDC	264 VAC, 390 VDC	Enclosed	4.242 kV	12 V	160 W, 200 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	42	$ 93.18

Description

General part information

WLT200 Series

Enclosed AC DC Converters 1 Output 48V 90 ~ 264 VAC, 120 ~ 390 VDC Input

Documents

Technical documentation and resources

No documents available
