Description
General part information

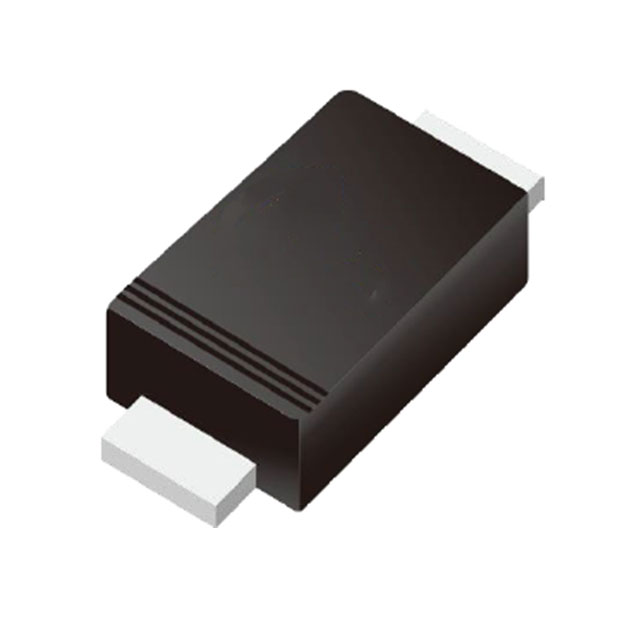

SMF22CA
35.5V Clamp 5.6A Ipp Tvs Diode Surface Mount SMF/SOD-123FL
Technical Specifications
Parameters and characteristics for this part
| Specification | SMF22CA |
|---|---|
| Applications | General Purpose |
| Current - Peak Pulse | 5.6 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | SOD-123F, SMF |
| Package Name | SMF/SOD-123FL |
| Power - Peak Pulse | 200 W |
| Power Line Protection | No |
| Type | Zener |
| Voltage - Breakdown (Min) | 24.4 V |
| Voltage - Clamping (Max) | 35.5 V |
| Voltage - Reverse Standoff (Typ) | 22 V |
