S1S0-3030309503-0000003S-00001

Active

Seoul Semiconductor

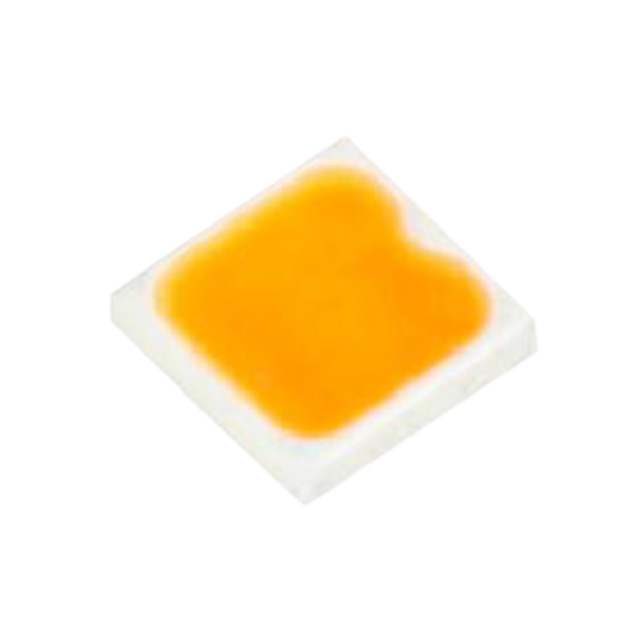

LED SUNLIKE WARM WHT 3000K 3030

Search across all available documentation for this part.

Active

Seoul Semiconductor

LED SUNLIKE WARM WHT 3000K 3030

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	S1S0-3030309503-0000003S-00001	S1S0 Series

CCT (K)	3000 K	2700 - 5000 K
Color	White, Warm	Cool, White, Warm
CRI (Color Rendering Index)	95	95
Current - Max [Max]	150 mA	150 - 200 mA
Current - Test	65 mA	65 - 150 mA
Flux @ 25°C, Current - Test	22 lm	21 - 101 lm
Height - Seated (Max) [Max] [z]	0.8 mm	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "	0.031 "
Lumens/Watt @ Current - Test	111 lm/W	107 - 111 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	1212	1212
Package / Case	3030 Metric	3030 Metric
Size / Dimension [x]	0.118 in	0.118 in
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	3 mm	3 mm
Size / Dimension [y]	0.118 in	0.118 in
Supplier Device Package	3030	3030
Thermal Resistance of Package [diameter]	10 °C/W	10 °C/W
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	3.05 V	3.05 - 6.4 V

LED CHIP COOL WHITE 5000K 200MA 95CRI 2-PIN SURFACE MOUNT T/R

Part	Lumens/Watt @ Current - Test	Package / Case	Package / Case	Flux @ 25°C, Current - Test	Supplier Device Package	Color	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Viewing Angle	CRI (Color Rendering Index)	Current - Max [Max]	CCT (K)	Mounting Type	Current - Test	Thermal Resistance of Package [diameter]
Seoul Semiconductor S1S0-3030509506-0000003S-00001	107 lm/W	1212	3030 Metric	101 lm	3030	Cool, White	0.8 mm	0.031 "	6.4 V	0.118 in	3 mm	3 mm	0.118 in	120 °	95	200 mA	5000 K	Surface Mount	150 mA	10 °C/W
Seoul Semiconductor S1S0-3030279503-0000003S-00001	108 lm/W	1212	3030 Metric	21 lm	3030	Warm, White	0.8 mm	0.031 "	3.05 V	0.118 in	3 mm	3 mm	0.118 in	120 °	95	150 mA	2700 K	Surface Mount	65 mA	10 °C/W
Seoul Semiconductor S1S0-3030309503-0000003S-00001	111 lm/W	1212	3030 Metric	22 lm	3030	Warm, White	0.8 mm	0.031 "	3.05 V	0.118 in	3 mm	3 mm	0.118 in	120 °	95	150 mA	3000 K	Surface Mount	65 mA	10 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting SunLike 3030 White, Warm 3000K 3-Step MacAdam Ellipse 3.05V 65mA 120° 1212 (3030 Metric)
