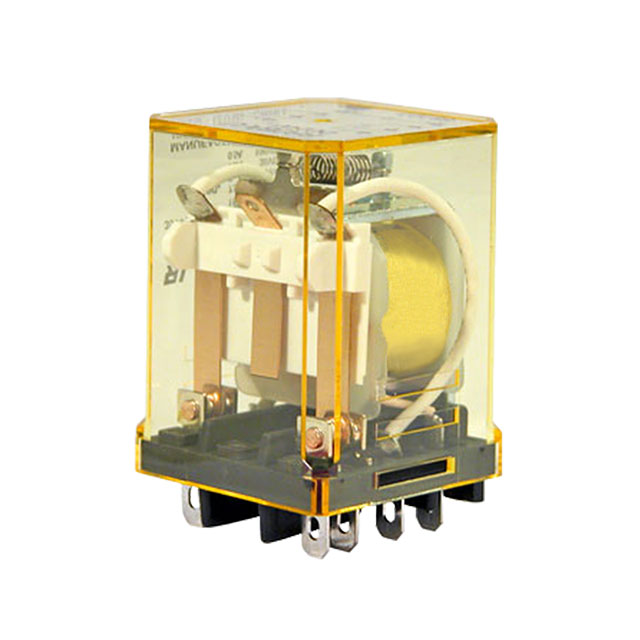

RR2BA-UAC12V

Active

IDEC Corporation

RELAY PLUG-IN DPDT 10A 12VAC ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RR2BA-UAC12V

Active

IDEC Corporation

RELAY PLUG-IN DPDT 10A 12VAC ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RR2BA-UAC12V	RR2BA-U Series

Approval Agency	CSA, TUV, cURus, CE	CSA, TUV, cURus, CE
Coil Current	210 mA	10.5 - 420 mA
Coil Resistance	18 Ohms	1.6 - 400 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VAC/DC	6 - 240 VAC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver (Ag)	Silver (Ag)
Contact Rating (Current)	10 A	10 A
Features	-	Lighted Indicator, Test Button
Load - Max Switching	300 W, 2400 VA	300 - 2400 W
Mounting Type	Socketable	Chassis Mount, Socketable
Must Operate Voltage	9.6 VAC/DC	4.8 - 192 VAC
Must Release Voltage	3.6 VAC	0.6 - 72 VAC/DC
Operate Time	25 ms	25 ms
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-25 °C	-25 °C
Relay Type	General Purpose	General Purpose
Release Time	25 ms	25 ms
Switching Voltage	30 VDC, 240 VAC	30 - 240 VDC
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm), Plug In, Quick Connect - 0.187" (4.7mm)

RR2BA-U Series

RELAY POWER DPDT 10A 8 BLADE W/SIDE FLANGE ROHS COMPLIANT: YES

Part	Operating Temperature [Min]	Operating Temperature [Max]	Relay Type	Switching Voltage	Must Operate Voltage	Contact Material	Load - Max Switching	Contact Form	Operate Time	Coil Current	Termination Style	Mounting Type	Contact Rating (Current)	Release Time	Coil Voltage	Coil Resistance	Must Release Voltage	Coil Type	Approval Agency	Features
IDEC Corporation RR2BA-USAC240V	-25 °C	40 °C	General Purpose	30 VDC, 240 VAC	192 VAC	Silver (Ag)	300 W, 2400 VA	DPDT (2 Form C)	25 ms	10.5 mA	Quick Connect - 0.187" (4.7mm)	Chassis Mount	10 A	25 ms	240 VAC	8.33 kOhms	72 VAC/DC	Non Latching	CE, CSA, cURus, TUV
IDEC Corporation RR2BA-ULAC6V	-25 °C	40 °C	General Purpose	30 VDC, 240 VAC	4.8 VAC/DC	Silver (Ag)	300 W, 2400 VA	DPDT (2 Form C)	25 ms	420 mA	Plug In, Quick Connect - 0.187" (4.7mm)	Socketable	10 A	25 ms	6 VAC	4.9 Ohms	1.8 VAC	Non Latching	CE, CSA, cURus, TUV	Lighted Indicator
IDEC Corporation RR2BA-UCDC48V	-25 °C	40 °C	General Purpose	30 VDC, 240 VAC	38.4 VDC	Silver (Ag)	300 W, 2400 VA	DPDT (2 Form C)	25 ms	30 mA	Plug In, Quick Connect - 0.187" (4.7mm)	Socketable	10 A	25 ms	48 VDC	1.6 kOhms	4.8 VDC	Non Latching	CE, CSA, cURus, TUV	Test Button
IDEC Corporation RR2BA-ULCDC48V	-25 °C	40 °C	General Purpose	30 VDC, 240 VAC	38.4 VDC	Silver (Ag)	300 W, 2400 VA	DPDT (2 Form C)	25 ms	30 mA	Plug In, Quick Connect - 0.187" (4.7mm)	Socketable	10 A	25 ms	48 VDC	1.6 kOhms	4.8 VDC	Non Latching	CE, CSA, cURus, TUV	Lighted Indicator, Test Button
IDEC Corporation RR2BA-ULCDC24V	-25 °C	40 °C	General Purpose	30 VDC, 240 VAC	19.2 VDC	Silver (Ag)	300 W, 2400 VA	DPDT (2 Form C)	25 ms	60 mA	Plug In, Quick Connect - 0.187" (4.7mm)	Socketable	10 A	25 ms	24 VDC	400 Ohms	2.4 VDC	Non Latching	CE, CSA, cURus, TUV	Lighted Indicator, Test Button
IDEC Corporation RR2BA-ULCAC12V	-25 °C	40 °C	General Purpose	30 VDC, 240 VAC	9.6 VAC/DC	Silver (Ag)	300 W, 2400 VA	DPDT (2 Form C)	25 ms	210 mA	Plug In, Quick Connect - 0.187" (4.7mm)	Socketable	10 A	25 ms	12 VAC/DC	18 Ohms	3.6 VAC	Non Latching	CE, CSA, cURus, TUV	Lighted Indicator, Test Button
IDEC Corporation RR2BA-UDC12V	-25 °C	40 °C	General Purpose	30 VDC, 240 VAC	9.6 VDC	Silver (Ag)	300 W, 2400 VA	DPDT (2 Form C)	25 ms	120 mA	Plug In, Quick Connect - 0.187" (4.7mm)	Socketable	10 A	25 ms	12 VDC	100 Ohms	1.2 VDC	Non Latching	CE, CSA, cURus, TUV
IDEC Corporation RR2BA-ULCDC110V	-25 °C	40 °C	General Purpose	30 VDC, 240 VAC	88 VDC	Silver (Ag)	300 W, 2400 VA	DPDT (2 Form C)	25 ms	13 mA	Plug In, Quick Connect - 0.187" (4.7mm)	Socketable	10 A	25 ms	110 VDC	8.46 kOhms	11 VDC	Non Latching	CE, CSA, cURus, TUV	Lighted Indicator, Test Button
IDEC Corporation RR2BA-ULCDC12V	-25 °C	40 °C	General Purpose	30 VDC, 240 VAC	9.6 VDC	Silver (Ag)	300 W, 2400 VA	DPDT (2 Form C)	25 ms	120 mA	Plug In, Quick Connect - 0.187" (4.7mm)	Socketable	10 A	25 ms	12 VDC	100 Ohms	1.2 VDC	Non Latching	CE, CSA, cURus, TUV	Lighted Indicator, Test Button
IDEC Corporation RR2BA-UAC24V	-25 °C	40 °C	General Purpose	30 VDC, 240 VAC	19.2 VAC	Silver (Ag)	300 W, 2400 VA	DPDT (2 Form C)	25 ms	105 mA	Plug In, Quick Connect - 0.187" (4.7mm)	Socketable	10 A	25 ms	24 VAC	79 Ohms	7.2 VAC	Non Latching	CE, CSA, cURus, TUV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.66
		10	$ 16.30
		25	$ 15.44
		50	$ 14.83
		100	$ 14.24
		250	$ 13.49
		500	$ 12.95
Newark	Each	1	$ 19.30
		10	$ 18.54
		100	$ 17.79

Description

General part information

RR2BA-U Series

General Purpose Relay DPDT (2 Form C) 12VAC Coil Socketable
