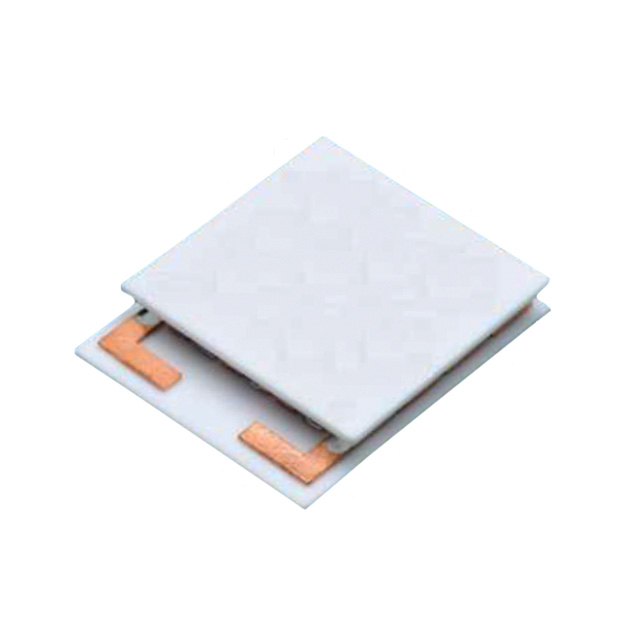

XLT3-8-01LS
ActiveMarlow Industries, Inc.
TEM THERMOCYCLER 20X20X3.55MM
Deep-Dive with AI
Search across all available documentation for this part.
XLT3-8-01LS
ActiveMarlow Industries, Inc.
TEM THERMOCYCLER 20X20X3.55MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XLT3-8-01LS |
|---|---|
| Current - Max [Max] | 7.4 A |
| Delta Tmax @ Th | 64 °C |
| Features | Lapped, Sealed, Lead Wires |
| Height [z] | 3.53 mm |
| Number of Stages | 1 |
| Operating Temperature | 125 °C |
| Qmax @ Th | 16.9 W |
| Resistance | 0.4 Ohms |
| Size / Dimension [x] | 24.43 mm |
| Size / Dimension [y] | 20 mm |
| Voltage - Max [Max] | 3.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.79 | |
| 5 | $ 12.96 | |||
| 10 | $ 12.62 | |||
| 25 | $ 12.18 | |||
| 50 | $ 11.86 | |||
Description
General part information
XLT3-8-01LS
Peltier Module 16.9W @ 27°C 7.4 A 125°C
Documents
Technical documentation and resources
No documents available
