Description
General part information

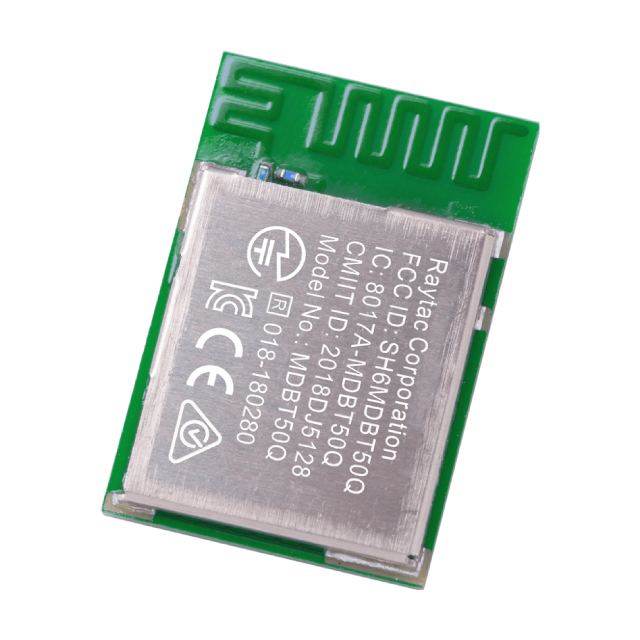

MDBT50Q-P512K
802.15.4, Bluetooth Bluetooth v5.4, Zigbee® Transceiver Module 2.36GHz ~ 2.5GHz PCB Trace Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | MDBT50Q-P512K |
|---|---|
| Antenna Type | PCB Trace |
| Current - Receiving (Max) | 10.7 mA |
| Current - Receiving (Min) | 3.4 mA |
| Current - Transmitting (Max) | 30.4 mA |
| Current - Transmitting (Min) | 2.3 mA |
| Data Rate | 2 Mbps |
| Frequency (Max) | 2.5 GHz |
| Frequency (Min) | 2.36 GHz |
| Memory Size (Flash) | 512 kB |
| Memory Size (RAM) | 128 kB |
| Memory Size (SRAM) | 128 kB |
| Memory Type | RAM, Flash |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 61-SMD Module |
| Power - Output | 8 dBm |
| Protocol | Bluetooth v5.4, Zigbee® |
| RF Family/Standard | 802.15.4, Bluetooth |
| Sensitivity | -103 dBm |
| Serial Interfaces | PWM, PDM, GPIO, SPI, I2S, ADC, I2C, USB, UART |
| Utilized IC / Part | nRF52833 |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 1.7 V |
