Description
General part information

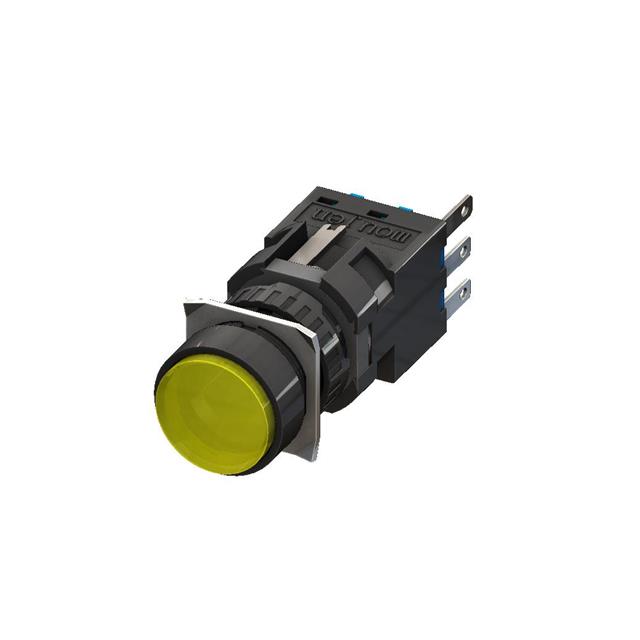

M6L-AS24EY
LED Panel Indicator Yellow Diffused 24V 25mA Quick Connect - 0.110" (2.8mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | M6L-AS24EY |
|---|---|
| Current | 25 mA |
| Features | UL94 V-0 |
| Ingress Protection | IP65 |
| Lamp Color | Yellow |
| Lens Color | Yellow |
| Lens Diameter | 18 mm |
| Lens Style | Round, Flat Top |
| Lens Transparency | Diffused |
| Panel Cutout Dimension | 0.64 " |
| Panel Cutout Shape | Round |
| Quick Connect Size (0.110") | 0.11 in |
| Ratings | DC |
| Termination Style | Quick Connect |
| Type | LED |
| Voltage | 24 V |
