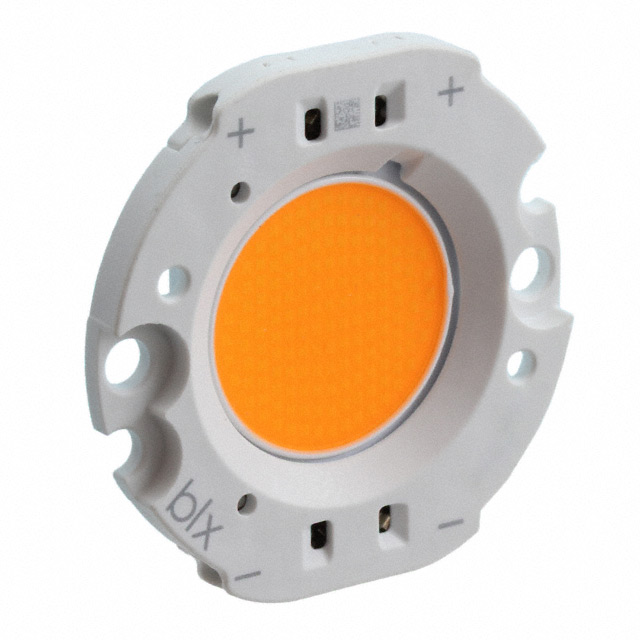

BXRC-20B4001-C-73-SE

Active

BRIDGELUX

5985LM 2000K 65 120° 1.17A 34.8V WARM WHITE -40℃~+105℃ CHIP ON BOARD (COB) LIGHT SOURCES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-20B4001-C-73-SE

Active

BRIDGELUX

5985LM 2000K 65 120° 1.17A 34.8V WARM WHITE -40℃~+105℃ CHIP ON BOARD (COB) LIGHT SOURCES ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 9.31
LCSC	Piece	1	$ 24.65
		200	$ 9.84
		500	$ 9.51
		1000	$ 9.34

Description

General part information

BXRC-20 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Vero® SE 18 Array White, Warm Round

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRC-20B4001-C-73-SE	BXRC-20 Series

CCT (K)	2000 K	2000 K
Color	White, Warm	White, Warm
Configuration	Round	Round, Starboard
CRI (Color Rendering Index)	65	65
Current - Max [Max]	2.34 A	2.1 - 700 A
Current - Test	-	1.05 - 350 A
Features	-	With Connector
Height [z]	3.6 mm	1.9 - 3.6 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	18.4 mm	9.9 - 29.2 mm
Lumens/Watt @ Current - Test	132 lm/W	121 - 149 lm/W
Luminous Flux @ Current/Temperature	-	1155 - 17724 lm
Size / Dimension [diameter]	36.2 mm	20 - 49.2 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	34.1 V	25.3 - 69.4 V

BXRC-20 Series

LED COB VERO 18 WM WHT RND 2000K

Part	Configuration	Lumens/Watt @ Current - Test	Type	Height [z]	Viewing Angle	Light Emitting Surface (LES) [diameter]	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Features	Current - Max [Max]	Temperature - Test	Color	CCT (K)	CRI (Color Rendering Index)	Lens Type	Size / Dimension [diameter]	Current - Test
BRIDGELUX BXRC-20B4001-C-73	Round	121 lm/W	Chip On Board (COB)	1.9 mm	120 °	18.4 mm	5351 lm	34.1 V	With Connector	2.34 A	85 °C	Warm, White	2000 K	65	Flat	36.2 mm
BRIDGELUX BXRC-20B4001-D-73-SE	Round	132 lm/W	Chip On Board (COB)	3.6 mm	120 °	18.4 mm	3929 lm	28.3 V		2.1 A	85 °C	Warm, White	2000 K	65	Flat	36.2 mm	1.05 A
BRIDGELUX BXRC-20B10K1-C-73	Round	149 lm/W	Chip On Board (COB)	1.9 mm	120 °	29.2 mm	17724 lm	69.4 V		3.42 A		Warm, White	2000 K	65	Flat	49.2 mm	1.71 A
BRIDGELUX BXRC-20B1001-D-73	Starboard	145 lm/W	Chip On Board (COB)	1.9 mm	120 °	9.9 mm	1322 lm	26 V	With Connector	700 mA		Warm, White	2000 K	65	Flat	20 mm	350 mA
BRIDGELUX BXRC-20B4001-D-73	Round	121 lm/W	Chip On Board (COB)	1.9 mm	120 °	18.4 mm	3981 lm	28.1 V	With Connector	2.1 A	85 °C	Warm, White	2000 K	65	Flat	36.2 mm	1.05 A
BRIDGELUX BXRC-20B10K1-C-73-SE	Round	149 lm/W	Chip On Board (COB)	3.6 mm	120 °	29.2 mm	17682 lm	69.4 V		3.42 A		Warm, White	2000 K	65	Flat	49.2 mm	1.71 A
BRIDGELUX BXRC-20B1001-B-73-SE	Round	131 lm/W	Chip On Board (COB)	3.6 mm	120 °	9.9 mm	1192 lm	33.8 V		540 mA	85 °C	Warm, White	2000 K	65	Flat	30.8 mm	270 mA
BRIDGELUX BXRC-20B1001-D-73-SE	Round	130 lm/W	Chip On Board (COB)	3.6 mm	120 °	9.9 mm	1155 lm	25.3 V		700 mA	85 °C	Warm, White	2000 K	65	Flat	30.8 mm	350 mA
BRIDGELUX BXRC-20B4001-C-73-SE	Round	132 lm/W	Chip On Board (COB)	3.6 mm	120 °	18.4 mm		34.1 V		2.34 A	85 °C	Warm, White	2000 K	65	Flat	36.2 mm
BRIDGELUX BXRC-20B10K1-D-73-SE	Round	149 lm/W	Chip On Board (COB)	3.6 mm	120 °	29.2 mm	11765 lm	37.6 V		4.2 A		Warm, White	2000 K	65	Flat	49.2 mm	2.1 A
