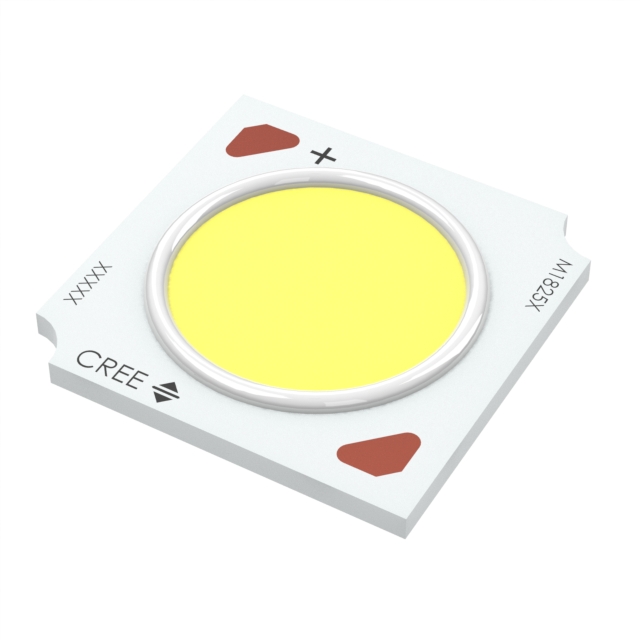

CMA1825-0000-00PN0U0A30G

Active

Cree LED

LED COB XLAMP WARM WHT SQ 3000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMA1825-0000-00PN0U0A30G

Active

Cree LED

LED COB XLAMP WARM WHT SQ 3000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMA1825-0000-00PN0U0A30G

CCT (K)	3000 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	1.067 A
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	12 mm
Lumens/Watt @ Current - Test	132 lm/W
Luminous Flux @ Current/Temperature	3202 lm
Size / Dimension [x]	17.85 mm
Size / Dimension [y]	17.85 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	34.6 V

CMA1825 Series

Part	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Height [z]	Luminous Flux @ Current/Temperature	Type	Current - Max [Max]	Lens Type	Color	Light Emitting Surface (LES) [diameter]	Configuration	Temperature - Test	Lumens/Watt @ Current - Test	CCT (K)
Cree LED CMA1825-0000-000N0H0A50G	34.6 V	80	17.85 mm	17.85 mm	115 °	1.7 mm	3598 lm	Chip On Board (COB)	1.6 A	Flat	Cool White	12 mm	Square	85 °C	149 lm/W
Cree LED CMA1825-0000-000N0H0A30G	34.6 V	80	17.85 mm	17.85 mm	115 °	1.7 mm	3370 lm	Chip On Board (COB)	1.6 A	Flat	Warm White	12 mm	Square	85 °C	139 lm/W	3000 K
Cree LED CMA1825-0000-00PN0Z0A40H	34.6 V	95	17.85 mm	17.85 mm	115 °	1.7 mm		Chip On Board (COB)	1.6 A	Flat	Neutral White	12 mm	Square	85 °C		4000 K
Cree LED CMA1825-0000-00PN0U0A31Q	34.6 V	90	17.85 mm	17.85 mm	115 °	1.7 mm		Chip On Board (COB)	1.6 A	Flat	Warm White	12 mm	Square	85 °C		3100 K
Cree LED CMA1825-0000-000N0Z0A30H	34.6 V	95	17.85 mm	17.85 mm	115 °	1.7 mm	2497 lm	Chip On Board (COB)	1.6 A	Flat	Warm White	12 mm	Square	85 °C	103 lm/W	3000 K
Cree LED CMA1825-0000-000N0B0A30E	34.6 V	70	17.85 mm	17.85 mm	115 °	1.7 mm	3557 lm	Chip On Board (COB)	1.6 A	Flat	Warm White	12 mm	Square	85 °C	147 lm/W	3000 K
Cree LED CMA1825-0000-000N0H0A27H	34.6 V	80	17.85 mm	17.85 mm	115 °	1.7 mm	3234 lm	Chip On Board (COB)	1.6 A	Flat	Warm White	12 mm	Square	85 °C		2700 K
Cree LED CMA1825-0000-00PN0U0A35H	34.6 V	90	17.85 mm	17.85 mm	115 °	1.7 mm	3228 lm	Chip On Board (COB)	1.6 A	Flat	Warm White	12 mm	Square	85 °C	133 lm/W	3500 K
Cree LED CMA1825-0000-000N0U0A30Q	34.6 V	90	17.85 mm	17.85 mm	115 °	1.7 mm	2849 lm	Chip On Board (COB)	1.6 A	Flat	Warm White	12 mm	Square	85 °C	118 lm/W	3000 K
Cree LED CMA1825-0000-00PN0U0A35G	34.6 V	90	17.85 mm	17.85 mm	115 °	1.7 mm	3228 lm	Chip On Board (COB)	1.6 A	Flat	Warm White	12 mm	Square	85 °C	133 lm/W	3500 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.52
		10	$ 9.04
		50	$ 8.79
		100	$ 8.09
		200	$ 7.36
		500	$ 6.89
		1000	$ 6.35

Description

General part information

CMA1825 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMA1825 White, Warm Square
