TCDD6R3X476M1GV001E
ActiveJohanson Technology Inc.

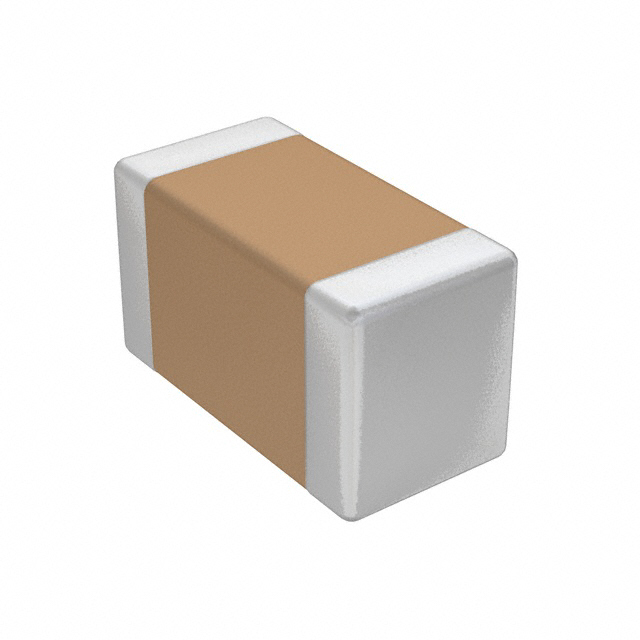

CAP CER 47UF 6.3V X5R 1206
TCDD6R3X476M1GV001E
ActiveJohanson Technology Inc.
CAP CER 47UF 6.3V X5R 1206
Description
General part information
TCDD6R3X476M1GV001E
47 µF ±20% 6.3V Ceramic Capacitor X5R 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | TCDD6R3X476M1GV001E |
|---|---|
| Applications | SMPS Filtering |
| Capacitance | 47 µF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension Length | 0.125 in |
| Size / Dimension Width | 0.062 in |
| Temperature Coefficient | X5R |
| Thickness (Max) | 0.07 in |
| Tolerance | 20 % |
| Voltage - Rated | 6.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
