1013083

Active

Phoenix Contact

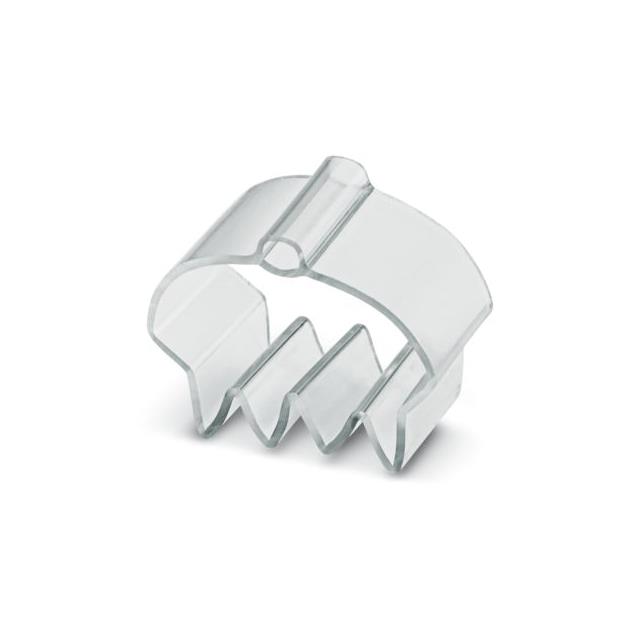

WIRE MARKER SLIP-ON 15MM X 4MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1013083

Active

Phoenix Contact

WIRE MARKER SLIP-ON 15MM X 4MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 0.72

Description

General part information

PATG Series

Wire Marker Carrier, Slip-On 0.59" W x 0.16" L (15.0mm x 4.0mm) Transparent Poly-Vinyl Chloride (PVC)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1013083	PATG Series

Cable Diameter	-	0.6 - 30 mm
Cable Diameter	-	1.2 - 35 mm
Cable Diameter	-	0.024 - 1.181 in
Cable Diameter	-	0.047 - 1.378 in
Cable Diameter	-	50 mm
Cable Diameter [diameter]	1.181 in, 0.866 in	0.059 - 1.969 in
Cable Diameter [diameter]	22 mm, 30 mm	1.5 - 35 mm
Color	Transparent	Transparent
Legend	Blank	Blank
Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-50 °C	-50 °C
Size [x]	4 mm	4 - 23 mm
Size [x]	0.16 "	0.16 - 0.91 in
Size [y]	15 mm	4 - 30 mm
Size [y]	0.59 in	0.16 - 1.18 in
Type	-	Wire Marker, Slip-On

PATG Series

WIRE MARKER SLIP-ON 18X4MM TRANS

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size [y]	Size [x]	Size [y]	Size [x]	Material	Color	Legend	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Cable Diameter [diameter]	Cable Diameter [diameter]	Type
Phoenix Contact 0820523	-50 °C	80 C	4 mm	0.71 in	0.16 in	18 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank	2 mm	4 mm	0.079 in	0.157 in
Phoenix Contact 1013096	-50 °C	80 C	15 mm	0.16 "	0.59 in	4 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank	30 mm	35 mm	1.181 in	1.378 in
Phoenix Contact 0827078	-50 °C	80 C	12 mm	0.16 "	0.47 "	4 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank	2 mm	4 mm	0.079 in	0.157 in
Phoenix Contact 0822453	-50 °C	80 C	30 mm	0.16 "	1.18 in	4 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank	2 mm	4 mm	0.079 in	0.157 in
Phoenix Contact 1013818	-50 °C	80 C	4 mm	0.16 "	0.39 "	10 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank	2 mm	4 mm	0.079 in	0.157 in
Phoenix Contact 1013067	-50 °C	80 C	15 mm	0.16 "	0.59 in	4 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank					10 mm, 14 mm	0.394 in, 0.551 in
Phoenix Contact 0828062	-50 °C	80 C					Poly-Vinyl Chloride (PVC)	Transparent	Blank					14 mm, 22 mm	0.551 in, 0.866 in	Wire Marker, Slip-On
Phoenix Contact 0827076	-50 °C	80 C	12 mm	0.16 "	0.47 "	4 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank	0.6 mm	1.2 mm	0.024 in	0.047 in
Phoenix Contact 0820510	-50 °C	80 C	4 mm	0.71 in	0.16 in	18 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank					1.5 mm, 2.5 mm	0.059 in, 0.098 in
Phoenix Contact 0822466	-50 °C	80 C	30 mm	0.16 "	1.18 in	4 mm	Poly-Vinyl Chloride (PVC)	Transparent	Blank	4 mm	7 mm	0.157 in	0.276 in
