180-078-172-020
ObsoleteNorComp Inc.

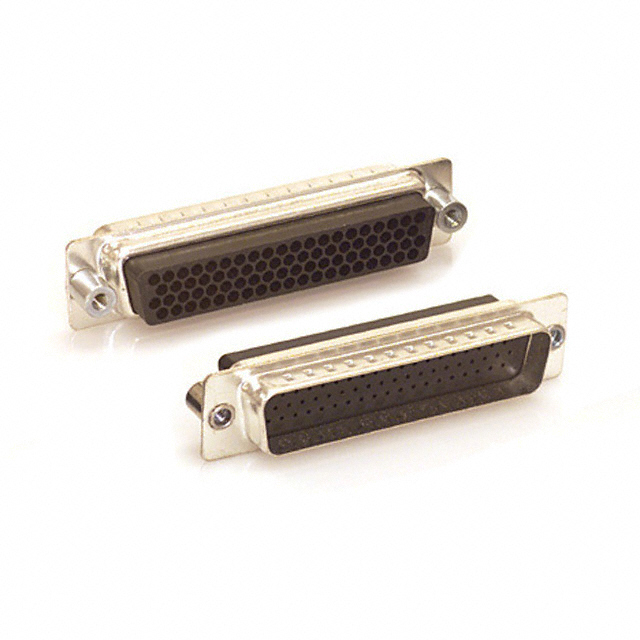

CONN D-SUB HD HOUSING PLUG 78POS
180-078-172-020
ObsoleteNorComp Inc.
CONN D-SUB HD HOUSING PLUG 78POS
Description
General part information
180-078-172-020
Plug for Male Contacts Housing D-Sub, High Density Connector 78 Position
Technical Specifications
Parameters and characteristics for this part
| Specification | 180-078-172-020 |
|---|---|
| Color | Black |
| Connector Layout | D, DD, High Density |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug for Male Contacts |
| Contact Type | Signal |
| Features | Shielded |
| Finish | Tin Plated |
| Flange Feature | Cable Side (4-40) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 78 |
| Number of Rows | 4 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -50 °C |
| Shell Material | Steel |
| Shell Size | 5 |
