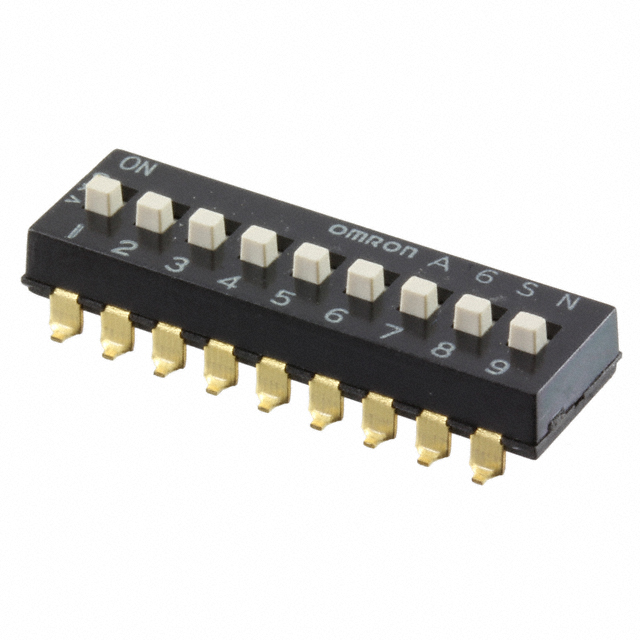

Specification	A6SN-9104-R100

Actuator Level	Raised
Actuator Type	Slide (Standard)
Circuit	SPST
Current Rating	0.025 A
Electrical Life (Cycles)	1000
Height Above Board	0.214 in
Length	0.976 in
Mounting Type	Surface Mount
Number of Positions	9
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Pitch	0.1 in
Pitch Type	Full
Termination Style	Gull Wing
Voltage Rating	24 V
Washable	Yes

A6SN Series

Part	Length	Electrical Life (Cycles)	Current Rating	Height Above Board	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Features	Pitch	Pitch Type	Actuator Type	Circuit	Mounting Type	Actuator Level	Termination Style	Washable	Voltage Rating
Omron Electronics Inc-EMC Div A6SN-3102-R100	0.376 in	1000	0.025 A	0.175 in	85 °C	-30 °C	3	Tape Seal	0.1 in	Full	Slide (Standard)	SPST	Surface Mount	Flush Recessed	Gull Wing	Yes	24 V
Omron Electronics Inc-EMC Div A6SN-3101	0.376 in	1000	0.025 A	0.175 in	85 °C	-30 °C	3		0.1 in	Full	Slide (Standard)	SPST	Surface Mount	Flush Recessed	Gull Wing	Yes	24 V
Omron Electronics Inc-EMC Div A6SN-8104	0.876 in	1000	0.025 A	0.214 in	85 °C	-30 °C	8		0.1 in	Full	Slide (Standard)	SPST	Surface Mount	Raised	Gull Wing	Yes	24 V
Omron Electronics Inc-EMC Div A6SN-7102-P	0.776 in	1000	0.025 A	0.175 in	85 °C	-30 °C	7	Tape Seal	0.1 in	Full	Slide (Standard)	SPST	Surface Mount	Flush Recessed	Gull Wing	Yes	24 V
Omron Electronics Inc-EMC Div A6SN-5104-P	0.576 in	1000	0.025 A	0.214 in	85 °C	-30 °C	5		0.1 in	Full	Slide (Standard)	SPST	Surface Mount	Raised	Gull Wing	Yes	24 V
Omron Electronics Inc-EMC Div A6SN-1101	0.176 in	1000	0.025 A	0.175 in	85 °C	-30 °C	1		0.1 in	Full	Slide (Standard)	SPST	Surface Mount	Flush Recessed	Gull Wing	Yes	24 V
Omron Electronics Inc-EMC Div A6SN-0104	1.076 in	1000	0.025 A	0.214 in	85 °C	-30 °C	10		0.1 in	Full	Slide (Standard)	SPST	Surface Mount	Raised	Gull Wing	Yes	24 V
Omron Electronics Inc-EMC Div A6SN-5101	0.576 in	1000	0.025 A	0.175 in	85 °C	-30 °C	5		0.1 in	Full	Slide (Standard)	SPST	Surface Mount	Flush Recessed	Gull Wing	Yes	24 V
Omron Electronics Inc-EMC Div A6SN-2104	0.276 in	1000	0.025 A	0.214 in	85 °C	-30 °C	2		0.1 in	Full	Slide (Standard)	SPST	Surface Mount	Raised	Gull Wing	Yes	24 V
Omron Electronics Inc-EMC Div A6SN-5104	0.576 in	1000	0.025 A	0.214 in	85 °C	-30 °C	5		0.1 in	Full	Slide (Standard)	SPST	Surface Mount	Raised	Gull Wing	Yes	24 V
