ECG.2B.310.CLLC

Active

LEMO

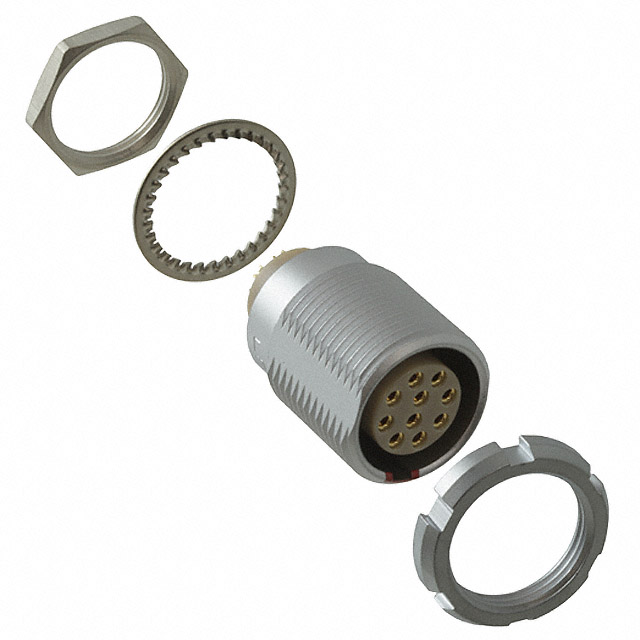

CONN RCPT FMALE 10P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ECG.2B.310.CLLC

Active

LEMO

CONN RCPT FMALE 10P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 66.43

Description

General part information

ECG.2B Series

10 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ECG.2B.310.CLLC	ECG.2B Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	8 A	2 - 17 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut
Mounting Type	-	Through Hole, Right Angle, Panel Mount
Number of Positions	10	2 - 19
Number of Positions	-	16
Number of Positions	-	1
Number of Positions	-	6
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	310	15 - 806
Shell Size - Insert	-	P13
Shielding	Shielded	Shielded
Termination	-	Solder, Crimp

ECG.2B Series

CONN RCPT FMALE 8POS GOLD SOLDER

Part	Shell Size - Insert	Shell Finish	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Shielding	Material Flammability Rating	Shell Material	Mounting Feature	Ingress Protection	Contact Material	Mounting Type	Current Rating (Amps)	Color	Orientation	Number of Positions	Fastening Type	Termination	Connector Type	Number of Positions
LEMO ECG.2B.308.CLV	308	Chrome	Gold	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Metal	Shielded	UL94 V-0	Brass	Front and Rear Side Nut	IP50	Bronze	Panel Mount, Right Angle, Through Hole	6 A	Silver	G	8	Push-Pull	Solder	Receptacle, Female Sockets
LEMO ECG.2B.310.CLN	310	Chrome	Gold	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Metal	Shielded	UL94 V-0	Brass	Front and Rear Side Nut	IP50	Bronze	Panel Mount, Through Hole	8 A	Silver	G	10	Push-Pull	Solder	Receptacle, Female Sockets
LEMO ECG.2B.437.CJA		Chrome	Gold	-55 °C	250 °C	Polyetheretherketone (PEEK)			Metal	Shielded	UL94 V-0	Brass	Front and Rear Side Nut	IP50			2 A	Silver	G	7	Push-Pull		Male Pins, Receptacle
LEMO ECG.2B.307.CYM	307	Chrome	Gold	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Metal	Shielded	UL94 V-0	Brass	Front and Rear Side Nut	IP50	Bronze		11 A	Silver	G	7	Push-Pull	Crimp	Receptacle, Female Sockets
LEMO ECG.2B.319.CYM	319	Chrome	Gold	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Metal	Shielded	UL94 V-0	Brass	Front and Rear Side Nut	IP50	Bronze		5 A	Silver	G	19	Push-Pull	Crimp	Receptacle, Female Sockets
LEMO ECG.2B.310.CLV	310	Chrome	Gold	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Metal	Shielded	UL94 V-0	Brass	Front and Rear Side Nut	IP50	Bronze	Panel Mount, Right Angle, Through Hole	6 A	Silver	G	10	Push-Pull	Solder	Receptacle, Female Sockets
LEMO ECG.2B.316.CLV	316	Chrome	Gold	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Metal	Shielded	UL94 V-0	Brass	Front and Rear Side Nut	IP50	Bronze	Panel Mount, Right Angle, Through Hole	6 A	Silver	G		Push-Pull	Solder	Receptacle, Female Sockets	16
LEMO ECG.2B.318.CYM	318	Chrome	Gold	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Metal	Shielded	UL94 V-0	Brass	Front and Rear Side Nut	IP50	Bronze		5.5 Amps	Silver	G	18	Push-Pull	Crimp	Receptacle, Female Sockets
LEMO ECG.2B.303.CLV	303	Chrome	Gold	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Metal	Shielded	UL94 V-0	Brass	Front and Rear Side Nut	IP50	Bronze	Panel Mount, Right Angle, Through Hole	12 A	Silver	G		Push-Pull	Solder	Receptacle, Female Sockets
LEMO ECG.2B.514.CYM	514	Chrome	Gold	-55 °C	250 °C	Polyetheretherketone (PEEK)			Metal	Shielded	UL94 V-0	Brass	Front and Rear Side Nut	IP50	Bronze			Silver	G		Push-Pull	Crimp	Receptacle, Female Sockets
