Specification	0447691802

Applications	General Purpose, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Post	0.134 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating	5 A
Fastening Type	Push-Pull
Features	Board Guide, Blind Mating
Insulation Color	Black
Insulation Height	0.535 in
Insulation Material	Glass Filled, Liquid Crystal Polymer (LCP)
Mated Stacking Height	16.86 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.118 in
Row Spacing - Mating	0.118 in
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	250 V

044769 Series

Part	Style	Contact Finish - Post	Current Rating	Contact Finish - Mating	Features	Mated Stacking Height	Pitch - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Contact Length - Post	Insulation Color	Row Spacing - Mating	Insulation Height	Connector Type	Number of Positions	Contact Type	Number of Positions Loaded	Number of Rows	Termination	Contact Finish Thickness - Mating	Fastening Type	Material Flammability Rating	Mounting Type	Voltage Rating	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Applications	Contact Material
Molex 0447691201	Board Board or Cable	Tin	5 A	Tin	Blind Mating Board Guide	16.86 mm	0.118 in	-40 °C	105 °C	0.134 in	Black	0.118 in	0.535 in	Receptacle	12	Female Socket	All	2	Solder	100 µin	Push-Pull	UL94 V-0	Through Hole	250 V	Square	Glass Filled Liquid Crystal Polymer (LCP)	100 Ąin	General Purpose Telecommunications	Phosphor Bronze

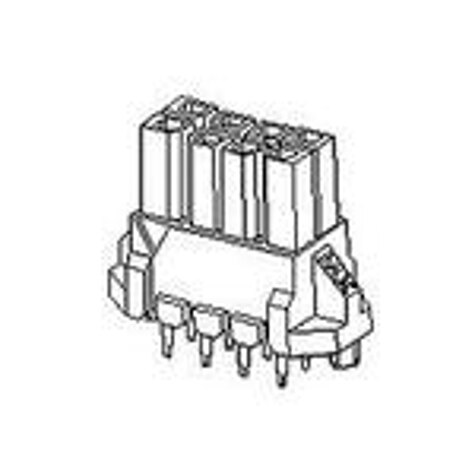

Molex 0447691003	Board Board or Cable	Tin	5 A	Gold	Blind Mating Board Guide	16.86 mm	0.118 in	-40 °C	105 °C	0.134 in	Black	0.118 in	0.535 in	Receptacle	10	Female Socket	All	2	Solder	30 µin	Push-Pull	UL94 V-0	Through Hole	250 V	Square	Glass Filled Liquid Crystal Polymer (LCP)	100 Ąin	General Purpose Telecommunications	Phosphor Bronze
Molex 0447691401	Board Board or Cable	Tin	5 A	Tin	Blind Mating Board Guide	16.86 mm	0.118 in	-40 °C	105 °C	0.134 in	Black	0.118 in	0.535 in	Receptacle	14	Female Socket	All	2	Solder	100 µin	Push-Pull	UL94 V-0	Through Hole	250 V	Square	Glass Filled Liquid Crystal Polymer (LCP)	100 Ąin	General Purpose Telecommunications	Phosphor Bronze
Molex 0447690602	Board Board or Cable	Tin	5 A	Gold	Blind Mating Board Guide	16.86 mm	0.118 in	-40 °C	105 °C	0.134 in	Black	0.118 in	0.535 in	Receptacle	6	Female Socket	All	2	Solder	15 µin	Push-Pull	UL94 V-0	Through Hole	250 V	Square	Glass Filled Liquid Crystal Polymer (LCP)	100 Ąin	General Purpose Telecommunications	Phosphor Bronze
Molex 0447691002	Board Board or Cable	Tin	5 A	Gold	Blind Mating Board Guide	16.86 mm	0.118 in	-40 °C	105 °C	0.134 in	Black	0.118 in	0.535 in	Receptacle	10	Female Socket	All	2	Solder	15 µin	Push-Pull	UL94 V-0	Through Hole	250 V	Square	Glass Filled Liquid Crystal Polymer (LCP)	100 Ąin	General Purpose Telecommunications	Phosphor Bronze
Molex 0447690402	Board Board or Cable	Tin	5 A	Gold	Blind Mating Board Guide	16.86 mm	0.118 in	-40 °C	105 °C	0.134 in	Black	0.118 in	0.535 in	Receptacle	4	Female Socket	All	2	Solder	15 µin	Push-Pull	UL94 V-0	Through Hole	250 V	Square	Glass Filled Liquid Crystal Polymer (LCP)	100 Ąin	General Purpose Telecommunications	Phosphor Bronze
Molex 0447691403	Board Board or Cable	Tin	5 A	Gold	Blind Mating Board Guide	16.86 mm	0.118 in	-40 °C	105 °C	0.134 in	Black	0.118 in	0.535 in	Receptacle	14	Female Socket	All	2	Solder	30 µin	Push-Pull	UL94 V-0	Through Hole	250 V	Square	Glass Filled Liquid Crystal Polymer (LCP)	100 Ąin	General Purpose Telecommunications	Phosphor Bronze
Molex 0447690601	Board Board or Cable	Tin	5 A	Tin	Blind Mating Board Guide	16.86 mm	0.118 in	-40 °C	105 °C	0.134 in	Black	0.118 in	0.535 in	Receptacle	6	Female Socket	All	2	Solder	100 µin	Push-Pull	UL94 V-0	Through Hole	250 V	Square	Glass Filled Liquid Crystal Polymer (LCP)	100 Ąin	General Purpose Telecommunications	Phosphor Bronze
Molex 0447691801	Board Board or Cable	Tin	5 A	Tin	Blind Mating Board Guide	16.86 mm	0.118 in	-40 °C	105 °C	0.134 in	Black	0.118 in	0.535 in	Receptacle	18	Female Socket	All	2	Solder	100 µin	Push-Pull	UL94 V-0	Through Hole	250 V	Square	Glass Filled Liquid Crystal Polymer (LCP)	100 Ąin	General Purpose Telecommunications	Phosphor Bronze
Molex 0447690401	Board Board or Cable	Tin	5 A	Tin	Blind Mating Board Guide	16.86 mm	0.118 in	-40 °C	105 °C	0.134 in	Black	0.118 in	0.535 in	Receptacle	4	Female Socket	All	2	Solder	100 µin	Push-Pull	UL94 V-0	Through Hole	250 V	Square	Glass Filled Liquid Crystal Polymer (LCP)	100 Ąin	General Purpose Telecommunications	Phosphor Bronze

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

0447691802 | Datasheet

Micro-Fit BMI Spec
