TJA1051ATK/3/0Z

Active

NXP USA Inc.

IC TRANSCEIVER 1/1 8HVSON

Search across all available documentation for this part.

Active

NXP USA Inc.

IC TRANSCEIVER 1/1 8HVSON

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

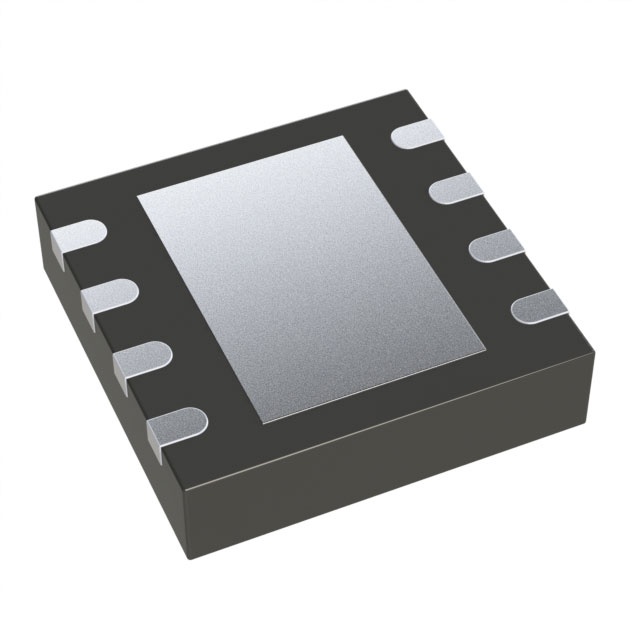

1/1 Transceiver CANbus 8-HVSON (3x3)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

IC TRANSCEIVER 1/1 8SO

Part	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Data Rate	Grade	Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]	Qualification	Protocol	Receiver Hysteresis	Duplex
NXP USA Inc. TJA1051T/3/2Z	Surface Mount	4.5 V	5.5 V	5 MBd	Automotive	Transceiver	150 °C	-40 °C	8-SO	8-SOIC	3.9 mm	0.154 in	AEC-Q100	CANbus	120 mV
NXP USA Inc. TJA1051ATK/3/0Z	Surface Mount	4.5 V	5.5 V	5 MBd	Automotive	Transceiver	150 °C	-40 °C	8-HVSON (3x3)	8-VDFN Exposed Pad			AEC-Q100	CANbus	120 mV
NXP USA Inc. TJA1051T/3,118	Surface Mount	4.5 V	5.5 V	5 MBd		Transceiver			8-SO	8-SOIC	3.9 mm	0.154 in		CANbus	120 mV	Half
NXP USA Inc. TJA1051T/3/1J	Surface Mount	4.5 V	5.5 V	5 MBd		Transceiver			8-SO	8-SOIC	3.9 mm	0.154 in		CANbus	120 mV	Half
NXP USA Inc. TJA1051AT/3/0Z	Surface Mount	4.5 V	5.5 V	5 MBd	Automotive	Transceiver	150 °C	-40 °C	8-SO	8-SOIC	3.9 mm	0.154 in	AEC-Q100	CANbus	120 mV
NXP USA Inc. TJA1051TK/3/1J	Surface Mount	4.5 V	5.5 V	5 MBd		Transceiver			8-HVSON (3x3)	8-VDFN Exposed Pad				CANbus	120 mV	Half
NXP USA Inc. TJA1051T/E/1J	Surface Mount	4.5 V	5.5 V	5 MBd		Transceiver			8-SO	8-SOIC	3.9 mm	0.154 in		CANbus	120 mV	Half
NXP USA Inc. TJA1051AT/0Z	Surface Mount	4.5 V	5.5 V	5 MBd	Automotive	Transceiver	150 °C	-40 °C	8-SO	8-SOIC	3.9 mm	0.154 in	AEC-Q100	CANbus	120 mV
NXP USA Inc. TJA1051T/1J	Surface Mount	4.5 V	5.5 V	5 MBd		Transceiver			8-SO	8-SOIC	3.9 mm	0.154 in		CANbus	120 mV	Half
NXP USA Inc. TJA1051T/2Z	Surface Mount	4.5 V	5.5 V	5 MBd	Automotive	Transceiver	150 °C	-40 °C	8-SO	8-SOIC	3.9 mm	0.154 in	AEC-Q100	CANbus	120 mV
