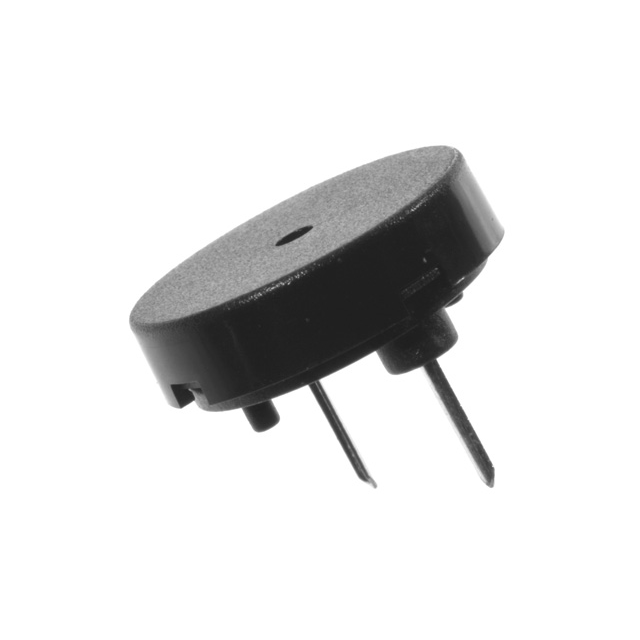

Specification	TP164003-2

Current - Supply	5 mA
Driver Circuitry	Externally Driven, Transducer
Frequency	4 kHz
Height - Seated (Max)	0.283 in
Input Type	Peak-Peak Signal
Mounting Type	Through Hole
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Port Location	Top
Size / Dimension Diameter	0.65 in
Sound Pressure Level (SPL)	75 dB
Technology	Piezo
Termination	PC Pins
Voltage - Rated	3 VDC
Voltage Range (Max)	25 V
Voltage Range (Min)	1 V
