TDD2100442
ActiveQuantic Evans
WET TANTALUM
TDD2100442
ActiveQuantic Evans
WET TANTALUM
Description
General part information
TDD2100442

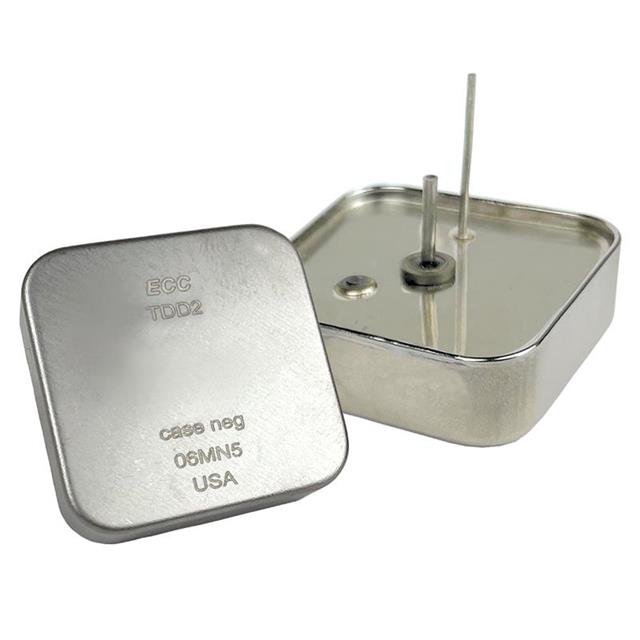

4.4 mF Hermetically Sealed Tantalum Capacitors 100 V Radial, Can 30mOhm @ 1kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | TDD2100442 |
|---|---|
| Capacitance | 4.4 mF |
| ESR (Equivalent Series Resistance) | 30 mOhm |
| Features | Hybrid Wet Tantalum |
| Height - Seated (Max) | 0.465 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Size / Dimension Length | 1.4 in |
| Size / Dimension Width | 1.4 in |
| Tolerance | 20 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 100 VAC/DC |
