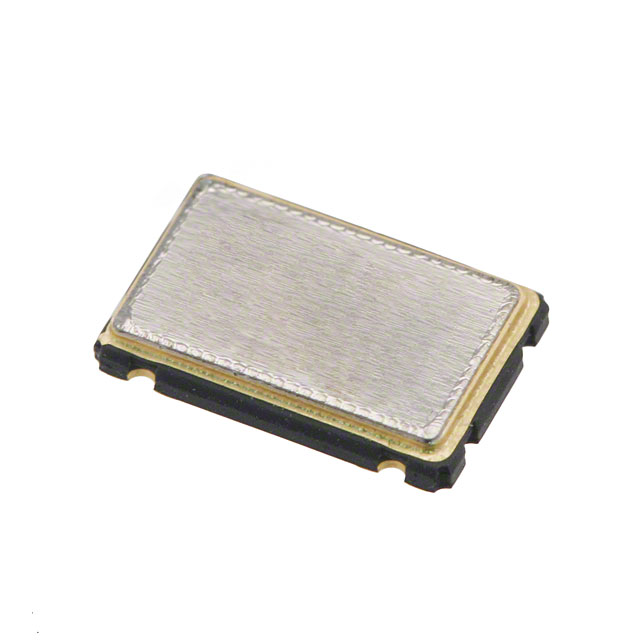

CB3-2I-14M745600
ObsoleteCTS-Frequency Controls
XTAL OSC XO 14.7456MHZ HCMOS TTL
CB3-2I-14M745600
ObsoleteCTS-Frequency Controls
XTAL OSC XO 14.7456MHZ HCMOS TTL
Description
General part information
CB3-2I-14M745600
14.7456 MHz XO (Standard) HCMOS, TTL Oscillator 5V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CB3-2I-14M745600 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 10 µA |
| Current - Supply (Max) | 25 mA |
| Frequency | 14.7456 MHz |
| Frequency Stability | 100 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.071 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | TTL, HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | XO (Standard) |
| Voltage - Supply | 5 VDC |
