R-CX-1001-72

Active

Remington Industries

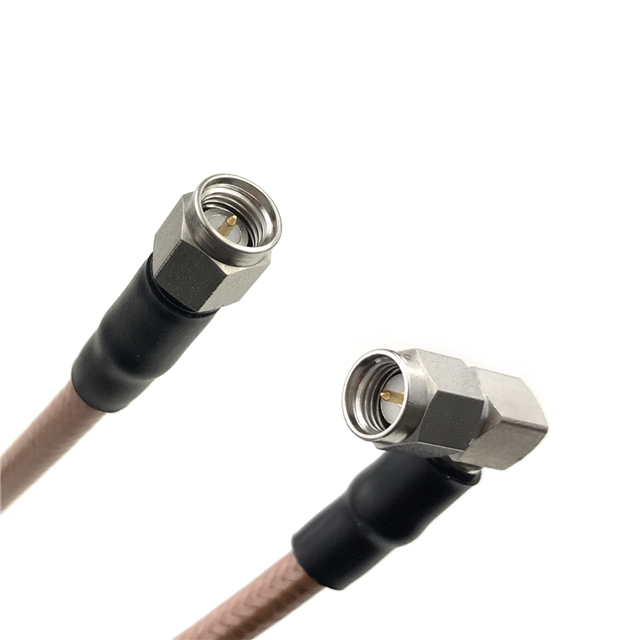

CBL ASSY SMA PLUG TO PLUG 6'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R-CX-1001-72

Active

Remington Industries

CBL ASSY SMA PLUG TO PLUG 6'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	R-CX-1001-72	R-CX-100 Series

1st Connector	SMA Plug	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Male	Male
2nd Connector	SMA Plug, Right Angle	SMA Plug, Right Angle, SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	RG-400	RG-400
Color	Tan	Tan
Features	Shielded	Shielded
Frequency - Max [Max]	12.4 GHz	12.4 GHz
Length	6 ft	4 - 50 '
Length	72 in	5 - 96 in
Length	1.8 m	1.5 - 1200 cm
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Impedance	50 Ohms	50 Ohms
Style	SMA to SMA	SMA to SMA

R-CX-100 Series

CBL ASSY SMA PLUG TO PLUG 36"

Part	2nd Contact Gender	Frequency - Max [Max]	2nd Connector Mounting Type	2nd Connector	Color	Operating Temperature [Max]	Operating Temperature [Min]	1st Connector	Style	Features	1st Contact Gender	Cable Type	1st Connector Mounting Type	Overall Impedance	Length	Length	Length
Remington Industries R-CX-1001-36	Male	12.4 GHz	Free Hanging (In-Line)	SMA Plug, Right Angle	Tan	165 °C	-55 °C	SMA Plug	SMA to SMA	Shielded	Male	RG-400	Free Hanging (In-Line)	50 Ohms	91.44 cm	36 in
Remington Industries R-CX-1002-96	Male	12.4 GHz	Free Hanging (In-Line)	SMA Plug, Right Angle	Tan	165 °C	-55 °C	Right Angle, SMA Plug	SMA to SMA	Shielded	Male	RG-400	Free Hanging (In-Line)	50 Ohms	2.4 m	96 "	8 '
Remington Industries R-CX-1001-180	Male	12.4 GHz	Free Hanging (In-Line)	SMA Plug, Right Angle	Tan	165 °C	-55 °C	SMA Plug	SMA to SMA	Shielded	Male	RG-400	Free Hanging (In-Line)	50 Ohms	4.6 m	15 ft	5 yd
Remington Industries R-CX-1001-24	Male	12.4 GHz	Free Hanging (In-Line)	SMA Plug, Right Angle	Tan	165 °C	-55 °C	SMA Plug	SMA to SMA	Shielded	Male	RG-400	Free Hanging (In-Line)	50 Ohms	609.6 mm	24 "
Remington Industries R-CX-1002-48	Male	12.4 GHz	Free Hanging (In-Line)	SMA Plug, Right Angle	Tan	165 °C	-55 °C	Right Angle, SMA Plug	SMA to SMA	Shielded	Male	RG-400	Free Hanging (In-Line)	50 Ohms	1200 mm	48 in	4 ft
Remington Industries R-CX-1000-144	Male	12.4 GHz	Free Hanging (In-Line)	SMA Plug	Tan	165 °C	-55 °C	SMA Plug	SMA to SMA	Shielded	Male	RG-400	Free Hanging (In-Line)	50 Ohms
Remington Industries R-CX-1002-300	Male	12.4 GHz	Free Hanging (In-Line)	SMA Plug, Right Angle	Tan	165 °C	-55 °C	Right Angle, SMA Plug	SMA to SMA	Shielded	Male	RG-400	Free Hanging (In-Line)	50 Ohms	7.6 m	25 ft	25 ft
Remington Industries R-CX-1000-72	Male	12.4 GHz	Free Hanging (In-Line)	SMA Plug	Tan	165 °C	-55 °C	SMA Plug	SMA to SMA	Shielded	Male	RG-400	Free Hanging (In-Line)	50 Ohms	1.8 m	72 in	6 ft
Remington Industries R-CX-1001-96	Male	12.4 GHz	Free Hanging (In-Line)	SMA Plug, Right Angle	Tan	165 °C	-55 °C	SMA Plug	SMA to SMA	Shielded	Male	RG-400	Free Hanging (In-Line)	50 Ohms	2.4 m	96 "	8 '
Remington Industries R-CX-1001-48	Male	12.4 GHz	Free Hanging (In-Line)	SMA Plug, Right Angle	Tan	165 °C	-55 °C	SMA Plug	SMA to SMA	Shielded	Male	RG-400	Free Hanging (In-Line)	50 Ohms	1200 mm	48 in	4 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 155.83
		25	$ 148.04
		50	$ 140.25
		100	$ 132.46

Description

General part information

R-CX-100 Series

Cable Assembly Coaxial SMA to SMA RG-400 72.0" (1.8m) 6.0'
