B57254V5104H360
ActiveEPCOS - TDK Electronics
THERM NTC 100KOHM 4250K 0402
B57254V5104H360
ActiveEPCOS - TDK Electronics
THERM NTC 100KOHM 4250K 0402
Description
General part information
B57254V5104H360

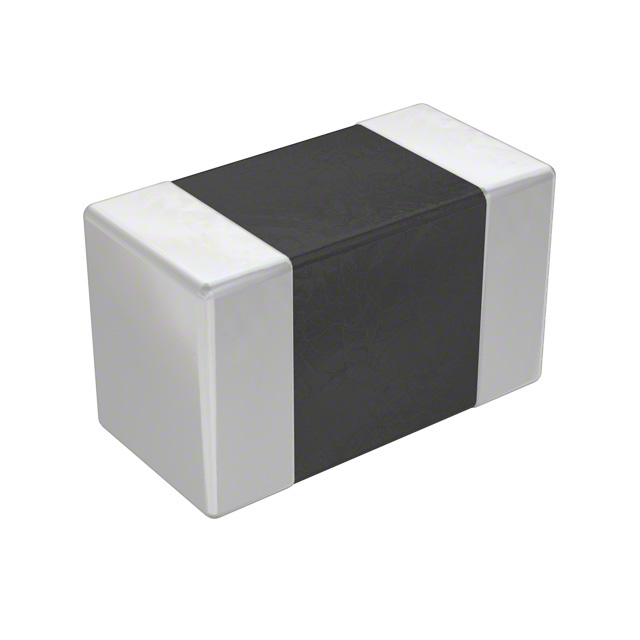

NTC Thermistor 100k 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | B57254V5104H360 |
|---|---|
| B Value (25/85) | 4311 K |
| B Value Tolerance | 1 % |
| B25/50 | 4250 K |
| Beta (B25/100) | 4334 K |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0402 (1005 Metric) |
| Power - Max | 150 mW |
| Qualification | AEC-Q200 |
| Resistance (Ohms) | 100 kOhm |
| Resistance Tolerance (%) | 3 % |
