1552D1BK
ActiveHammond Manufacturing

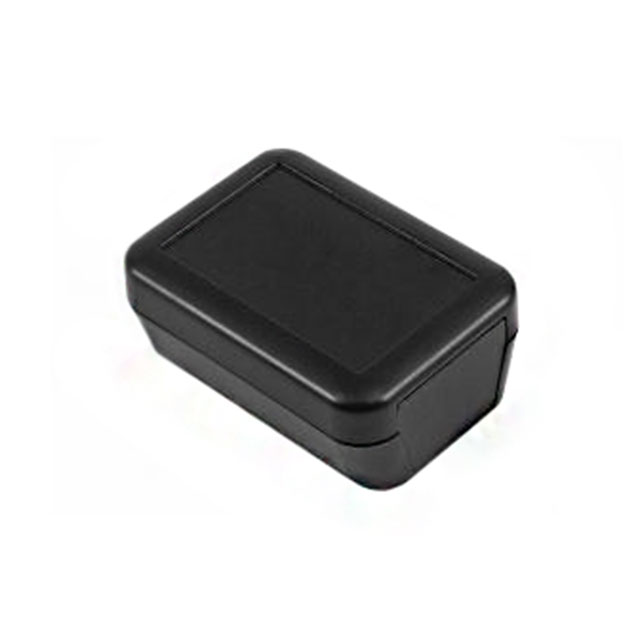

BOX ABS BLACK 2.76"L X 1.97"W
Deep-Dive with AI
Search across all available documentation for this part.
1552D1BK
ActiveHammond Manufacturing
BOX ABS BLACK 2.76"L X 1.97"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1552D1BK |
|---|---|
| Area (L x W) | 35.1 cm² |
| Area (L x W) | 5.44 in² |
| Color | Black |
| Container Type | Box |
| Design | Cover Included |
| Height [z] | 1.18 in |
| Height [z] | 29.97 mm |
| Material | ABS |
| Material Flammability Rating | UL94 V-0 |
| Ratings | IP54 |
| Thickness | 2.03 mm |
| Thickness | 0.08 " |
1552 Series
| Part | Accessory Type | For Use With/Related Products | Color | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Container Type | Design | Material | Height [z] | Height [z] | Ratings | Material Flammability Rating | Thickness | Thickness | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Type | Size / Dimension [z] | Area (L x W) | Area (L x W) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hammond Manufacturing | Cable Gland Kit | 1552C Series | |||||||||||||||||||||
Hammond Manufacturing | Wall Mount | 1552D Series | |||||||||||||||||||||
Hammond Manufacturing | Gray | 1.97 " | 109.98 mm | 4.33 in | 50.04 mm | Box | Cover Included | ABS | 0.87 " | 22.1 mm | IP54 | UL94 V-0 | 2.03 mm | 0.08 " | |||||||||
Hammond Manufacturing | Gray | 1.97 " | 109.98 mm | 4.33 in | 50.04 mm | Box | Cover Included | ABS | 1.18 in | 29.97 mm | IP54 | UL94 V-0 | 2.03 mm | 0.08 " | |||||||||
Hammond Manufacturing | 1552D Series | Gray | 2 in | 76.2 mm | 3 " | ABS | 50.8 mm | 0.88 in | 22.35 mm | Panel End | |||||||||||||
Hammond Manufacturing | Black | 1.97 " | 109.98 mm | 4.33 in | 50.04 mm | Box | Cover Included | ABS | 1.18 in | 29.97 mm | IP54 | UL94 V-0 | 2.03 mm | 0.08 " | |||||||||
Hammond Manufacturing | Cable Gland Kit | 1552D Series | |||||||||||||||||||||
Hammond Manufacturing | 1552C Series | Gray | 2 in | 76.2 mm | 3 " | 50.8 mm | ABS | 0.63 in | Panel End | 16 mm | |||||||||||||
Hammond Manufacturing | Gray | Box | Cover Included | ABS | 0.87 " | 22.1 mm | IP54 | UL94 V-0 | 2.03 mm | 0.08 " | 35.1 cm² | 5.44 in² | |||||||||||
Hammond Manufacturing | 1552C Series | Black | 2 in | 76.2 mm | 3 " | 50.8 mm | ABS | 0.63 in | Panel End | 16 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 7.88 | |
| 5 | $ 7.29 | |||
| 10 | $ 6.70 | |||
| 25 | $ 6.30 | |||
| 50 | $ 5.91 | |||
| 100 | $ 5.51 | |||
| 250 | $ 5.42 | |||
| 500 | $ 5.32 | |||
| 1000 | $ 5.24 | |||
Description
General part information
1552 Series
Box ABS Black Cover Included 2.760" L x 1.970" W (70.10mm x 50.04mm) X 1.180" (29.97mm)
Documents
Technical documentation and resources
No documents available
