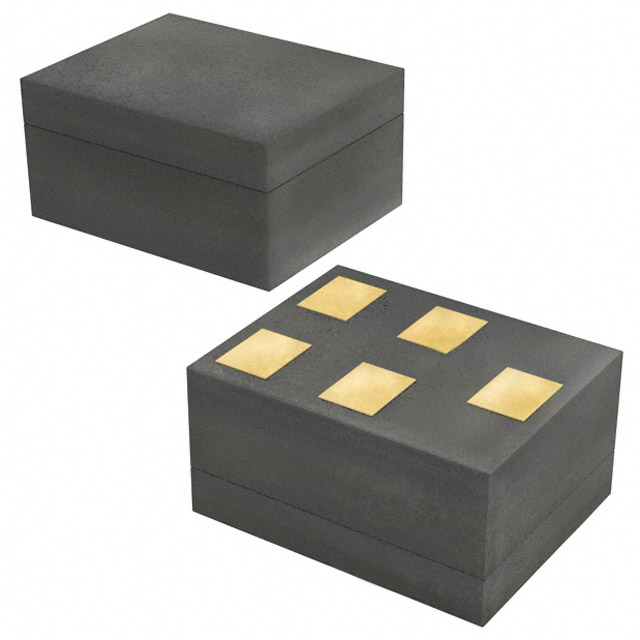

AFS14A72-2436.00-T2
ObsoleteAbracon LLC
FILTER SAW 2.436GHZ 5SMD
AFS14A72-2436.00-T2
ObsoleteAbracon LLC
FILTER SAW 2.436GHZ 5SMD
Description
General part information
AFS14A72-2436.00-T2
2.436GHz Frequency General Purpose RF SAW Filter (Surface Acoustic Wave) 3.5dB 72MHz Bandwidth 5-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | AFS14A72-2436.00-T2 |
|---|---|
| Applications | General Purpose |
| Bandwidth | 72 MHz |
| Frequency - Center | 2.436 GHz |
| Height (Max) | 0.028 in |
| Insertion Loss | 3.5 dB |
| Mounting Type | Surface Mount |
| Package / Case | 5-SMD, No Lead |
| Size / Dimension Length | 0.055 in |
| Size / Dimension Width | 0.043 in |
