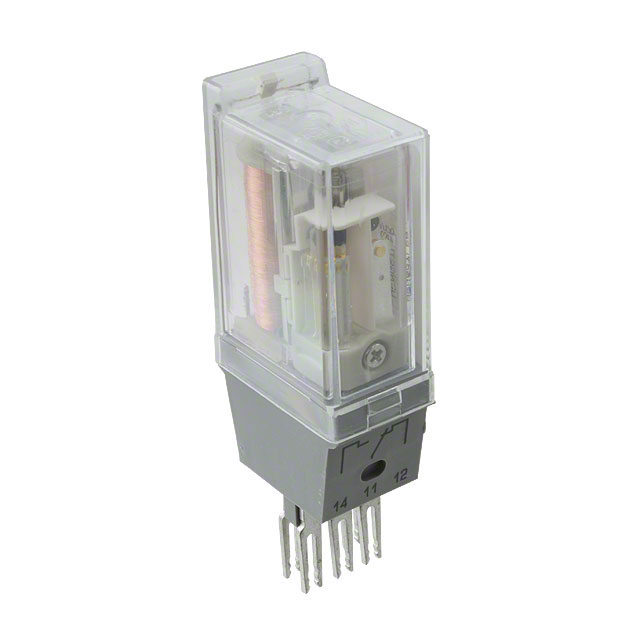

RELAY CONNECTOR, SPDT, 24VDC ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2821012
ActivePhoenix Contact
RELAY CONNECTOR, SPDT, 24VDC ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2821012 | 28210 Series |
|---|---|---|
| Approval Agency | EAC | EAC, GOST |
| Coil Current | 21 mA | 12 - 21 mA |
| Coil Resistance | 114.3 Ohms | 114.3 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VDC | 24 - 120 VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 6 A | 6 A |
| Features | - | Lighted Indicator |
| Mounting Type | Socketable | Socketable |
| Operate Time | 15 ms | 15 ms |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 25 ms | 15 - 25 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Plug In | Plug In |
28210 Series
RELAY CONNECTOR, SPDT, 24VDC ROHS COMPLIANT: YES
| Part | Release Time | Operate Time | Contact Material | Mounting Type | Contact Form | Relay Type | Termination Style | Coil Type | Approval Agency | Coil Voltage | Coil Current | Contact Rating (Current) | Operating Temperature [Min] | Operating Temperature [Max] | Switching Voltage | Coil Resistance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2821012 | 25 ms | 15 ms | Silver Cadmium Oxide (AgCdO) | Socketable | SPDT (1 Form C) | General Purpose | Plug In | Non Latching | EAC | 24 VDC | 21 mA | 6 A | -20 C | 60 °C | 250 VAC, 250 VDC | 114.3 Ohms | |
Phoenix Contact 2821070 | 15 ms | 15 ms | Silver Cadmium Oxide (AgCdO) | Socketable | SPDT (1 Form C) | General Purpose | Plug In | Non Latching | GOST | 120 VAC | 12 mA | 6 A | -20 C | 60 °C | 250 VAC, 250 VDC | Lighted Indicator |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 127.89 | |
| 10 | $ 122.15 | |||
| 50 | $ 117.12 | |||
| 100 | $ 109.21 | |||
| 250 | $ 100.59 | |||
Description
General part information
28210 Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil Socketable
